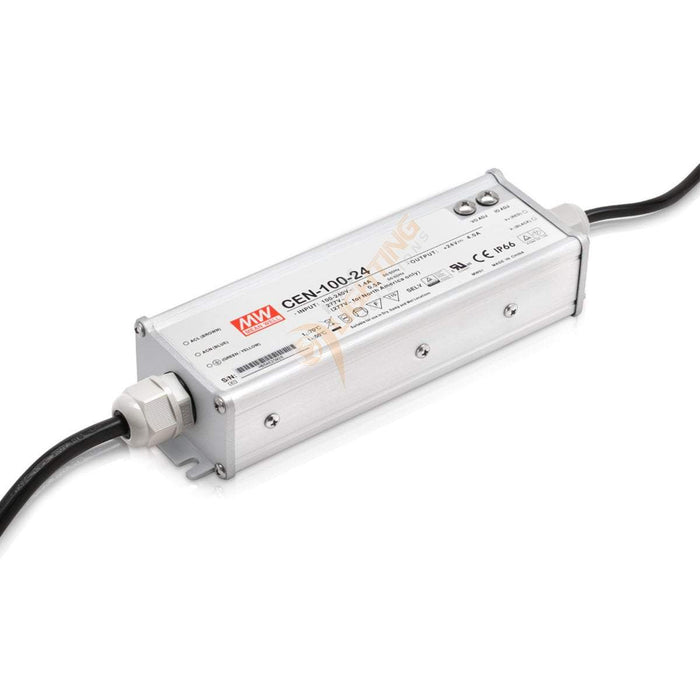

Mean Well 100W LED Driver - 24V DC - CEN-100 series
Features:
This particular LED Driver is a 100W AC-DC LED Driver featuring the dual mode constant voltage and constant voltage and is part of the CEN-100 Series. This 100W LED Driver has an input of 90-295VAC and an output of 24VAC.
Thanks to the high efficiency up to 94%, with the fanless design, the 100W LED Driver is able to operate for -22 ~+158F case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this Driver to fit both indoor and outdoor applications.
This CEN-100 Driver is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.
Technical Specs |
|
---|---|
Type | LED Driver |
Item Dimensions | 7 1/2'' x 2 1/2'' x 1 3/4'' |
Wattage | 100W |
Input Voltage | 90 - 295VAC |
Input Current | 0.5 - 1.4 A |
Output Current | 0 - 3 A |
IP Rating | IP66 |
Operating Temperature | -22 Degrees F to 158 Degrees F |
Warranty | 7 years |
Certification | UL Listed |
Safety Standards | UL8750, TUV EN60950-1 approved |
Features | Over Current, Short-Circuit, and Over-Voltage |
