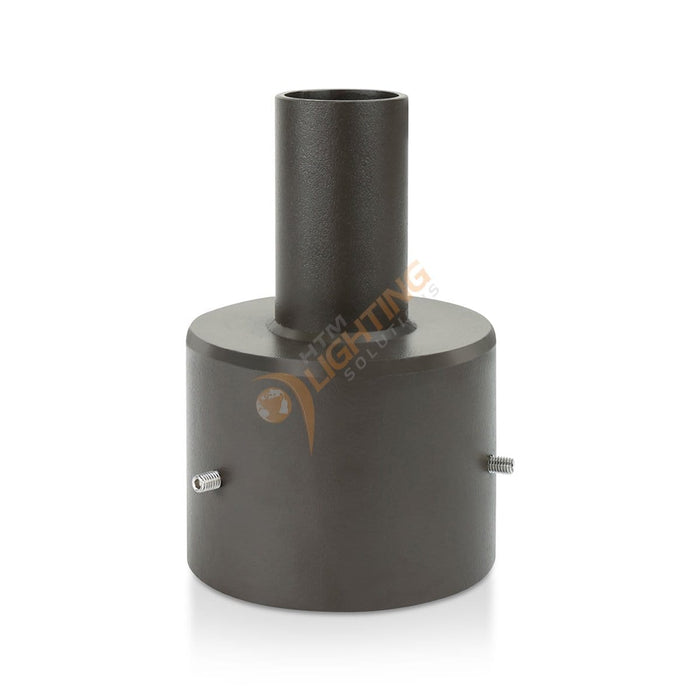

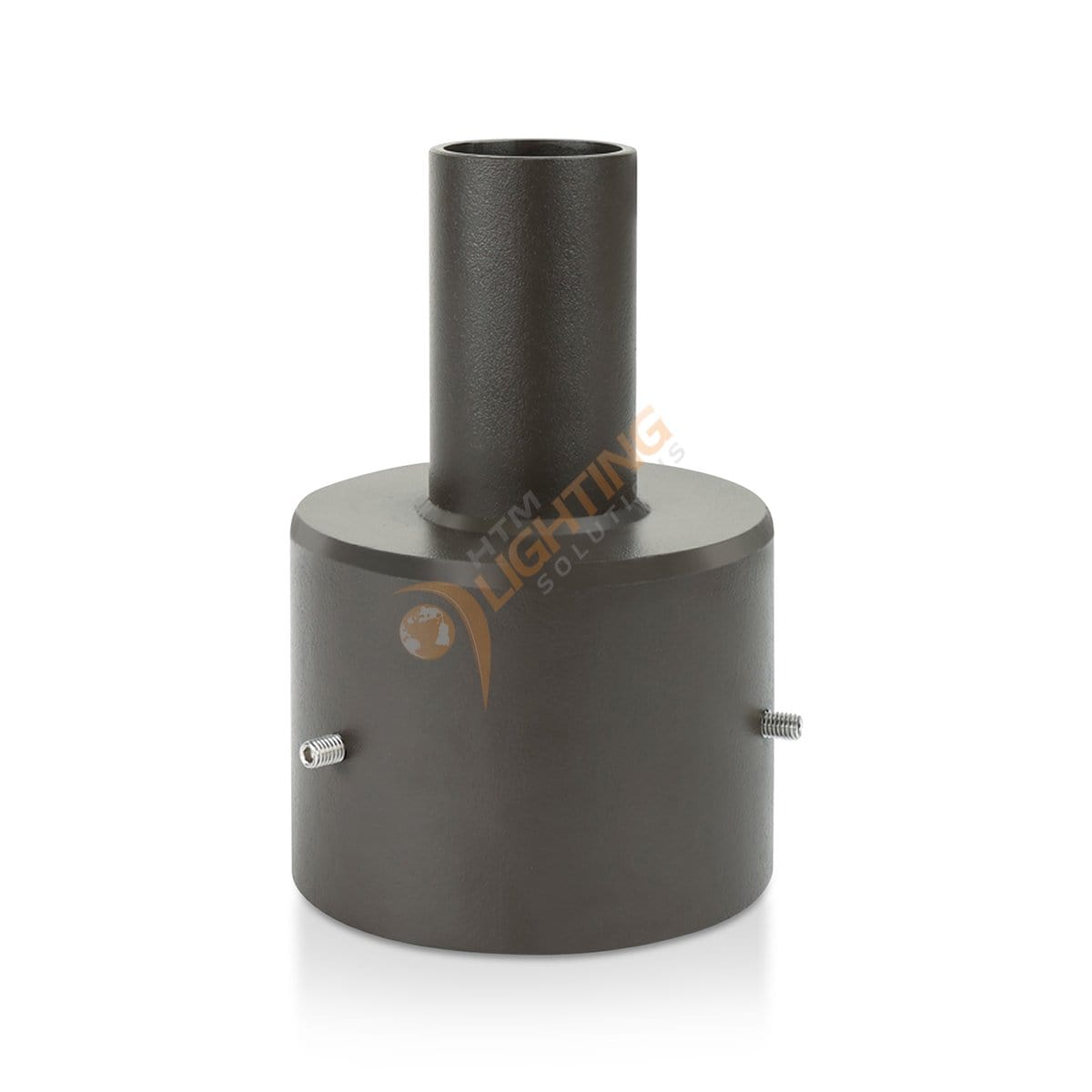

5" Round Pole Mount With 2-3/8" Vertical Tenon
This Heavy Duty Steel Mounting Bracket is made to fit over any 5in Round Concrete, Fiberglass, or Steel Poles. Hardware Kit is included for a quick and easy installation!
Includes a 2-3/8in Vertical Tenon for parking lot pole mount commercial outdoor lighting applications using Adjustable Split-Fit LED Parking Lot Fixtures.

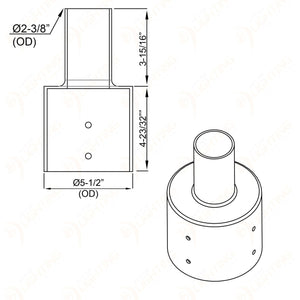

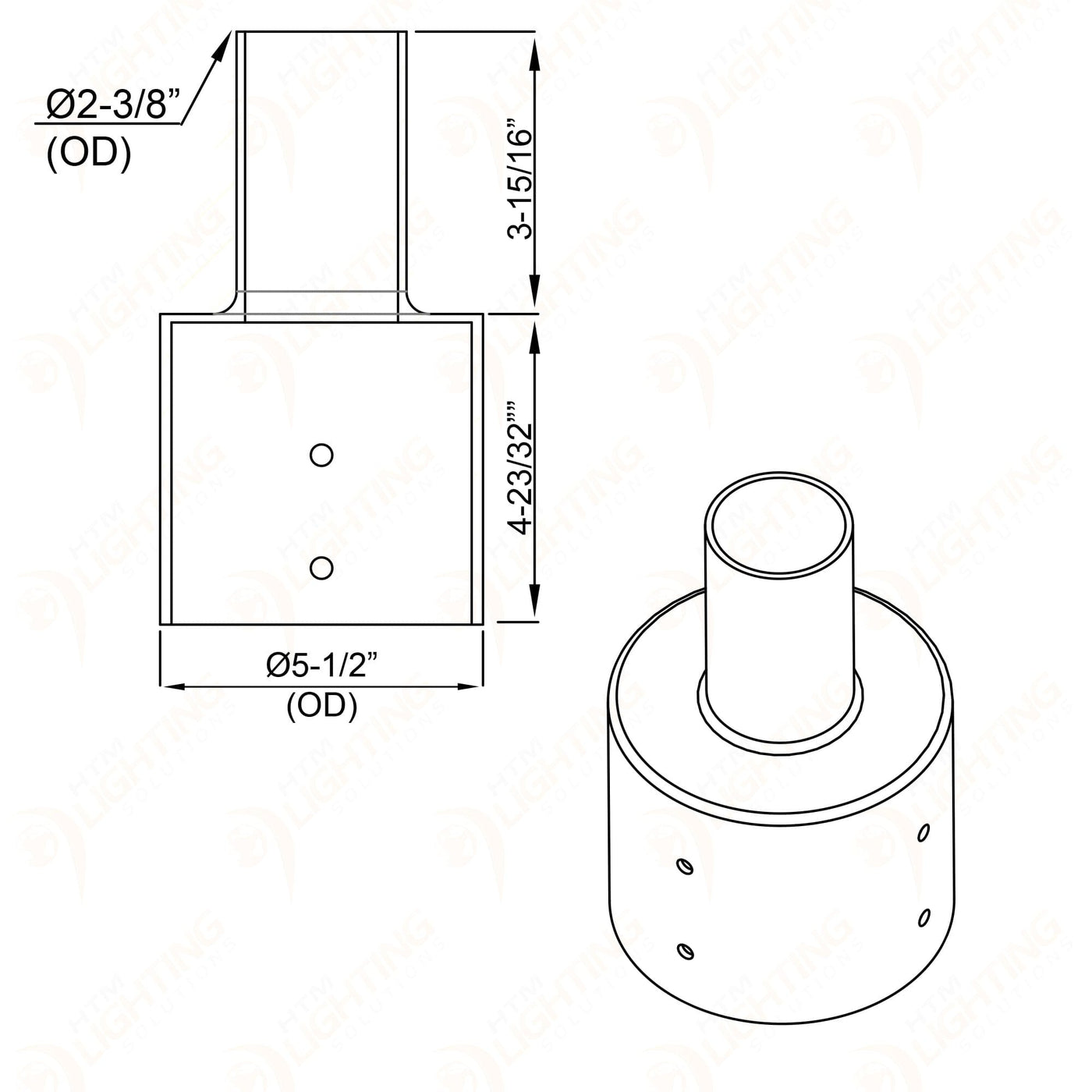

This pole top slip fitter Tenon Bracket has a 5-1/2in Outer Diameter and total Height of 8-21/32in. The Tenon measures 2-3/8in with a Height of 3-15/16in.
|Type||Pole Mounting Accessories|
|Adapter Type||Vertical Tenon|
|Mounting Surface||5in. Round Pole|
|Required Pole Size||5in.|
|Box Dimensions (in.)|
|Box Weight (lbs)|
|Carton Dimensions (in.)|
|Cartin Weight (lbs)|
