Description

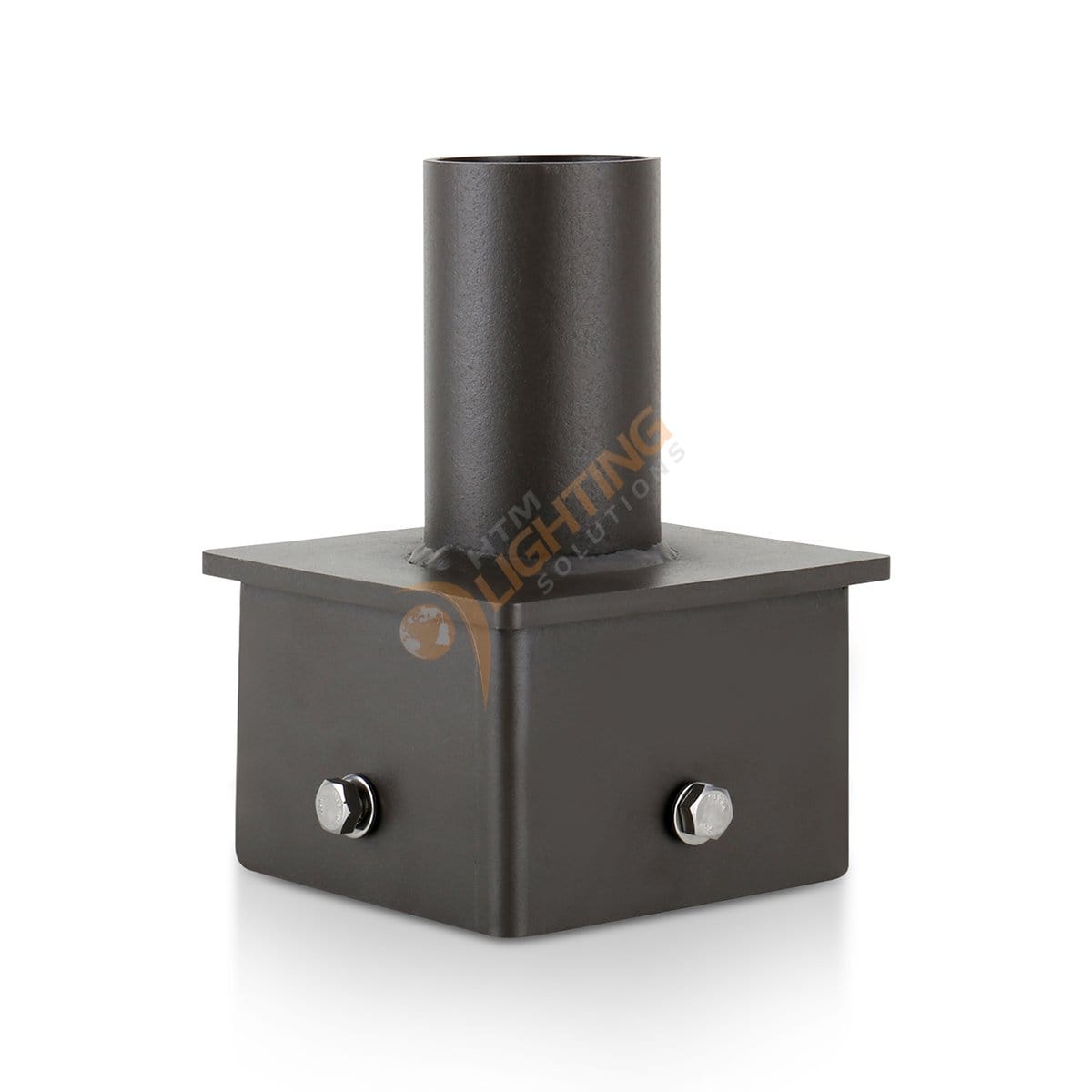

This Heavy Duty Steel Mounting Bracket is made to fit into any 5in Square Fiberglass, Concrete, or Steel Pole, and Hardware Kit is included for a quick and easy installation!
Includes a 2-3/8in Vertical Tenon for parking lot pole mount commercial outdoor lighting applications using Adjustable Split-Fit LED Parking Lot Fixtures.

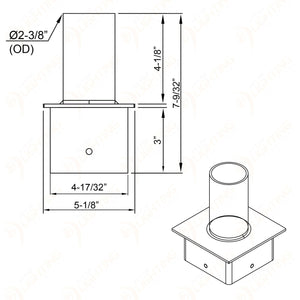

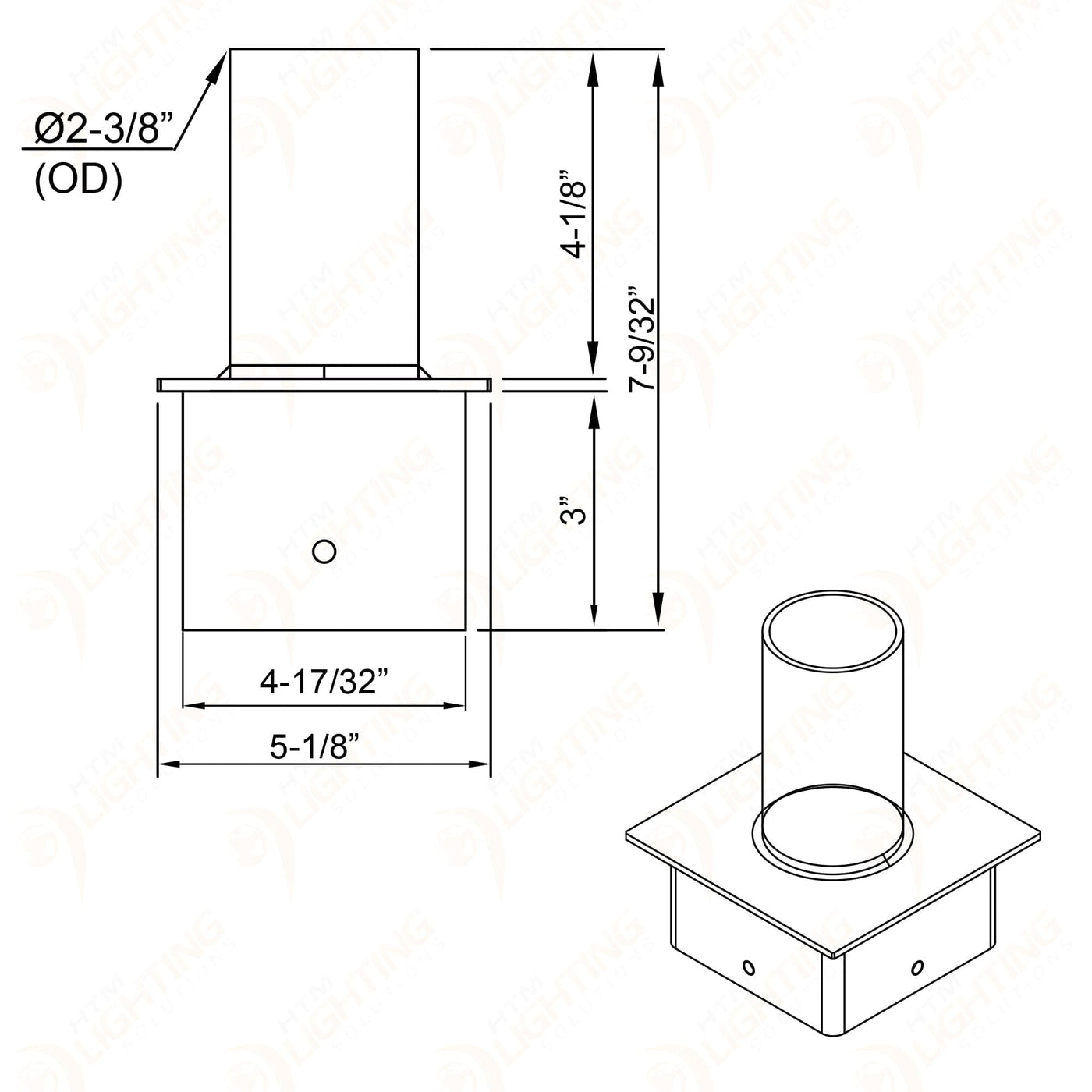

The 5x5 pole mounting bracket fits into the top of a 5in Square Pole and has a total Height of 7-9/32in. The Tenon measures 2-3/8in with a Height of 4-1/8in.
| Type | Pole Mounting Accessories | ||
| Adapter Type | Vertical Tenon | ||
| Extension Quantity | 1 | ||
| Mounting Surface | 5in Square Pole |
| Finish | Bronze |
| Material | Steel |
| Required Pole Size | 5in |
| Certification(s) |
|
Downloads
| Box Qty | 1 |
| Box Dimensions (in.) | |
| Box Weight (lbs) |
| Carton Qty | |
| Carton Dimensions (in.) | |
| Cartin Weight (lbs) |
