Description

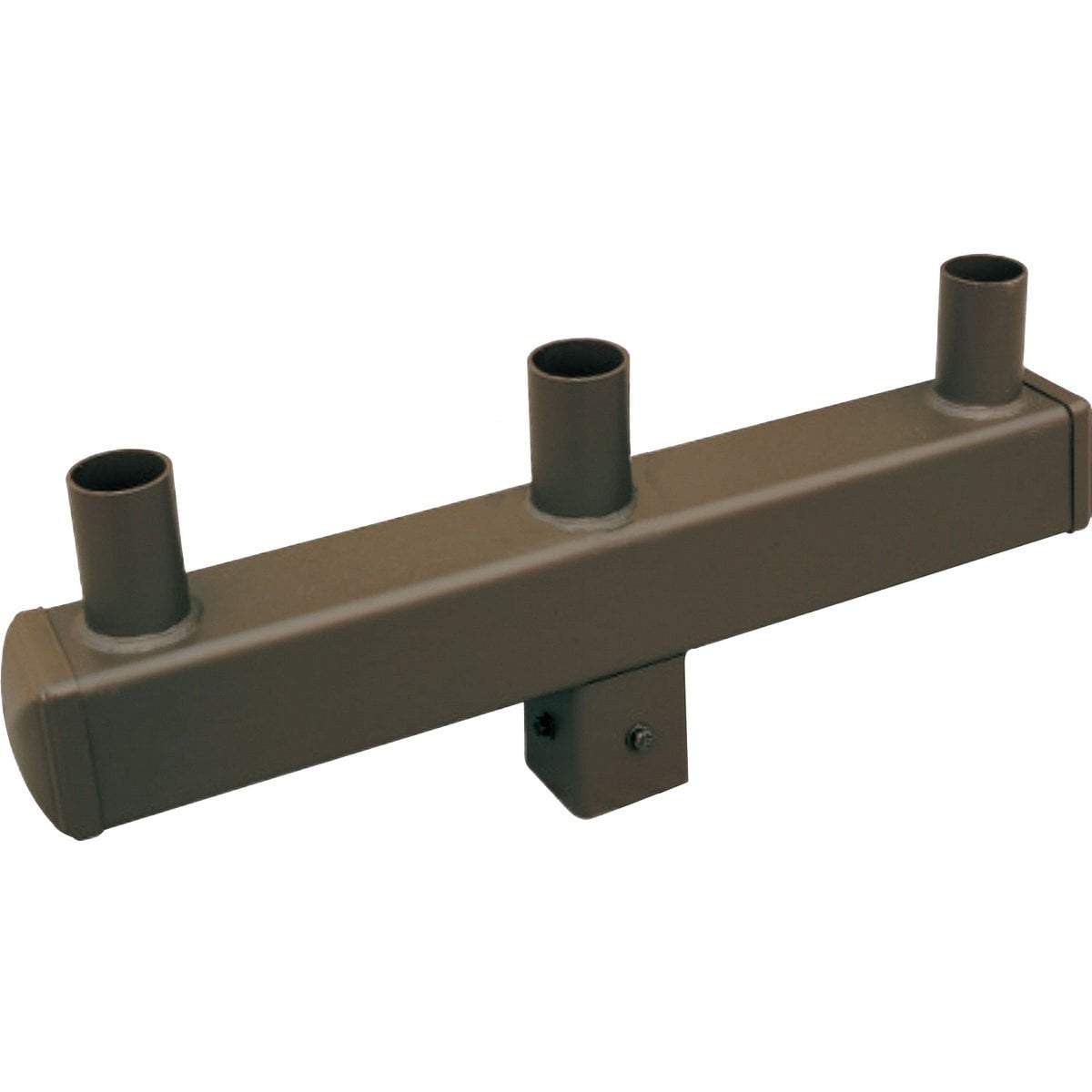

These 180 Degree Triple Vertical Tenon Adapters are available in a Bronze finish and fit over a 2-3/8in Vertical Tenon.
The Mount Adapter has (3x) 2-3/8in Vertical Tenons for any compatible Adjustable Split-Fit LED Parking Lot Fixtures for increased visibility!
Fits over any 5in Square Wood, Fiberglass, Concrete, Aluminum, or Steel Poles with an existing 2-3/8in Vertical Tenon, and Hardware Kit is included for easy installation!
The durable steel mounting bracket is designed for outdoor use and is perfect for commercial outdoor parking lot applications, such as Parking Lot, Basketball, and Tennis Court lighting, among many others.
Spacing across each tenon is 26in with an overall width of 57-1/2.
| Type | Pole Mounting Accessories | ||
| Adapter Type | Vertical Tenon | ||
| Extension Quantity | 3 | ||
| Mounting Surface | Straight Square Steel Pole |
| Finish | Bronze |
| Material | Steel |
| Required Pole Size | 5in |
| Certification(s) |
|
Downloads
| Box Qty | 1 |
| Box Dimensions (in.) | |
| Box Weight (lbs) |
| Carton Qty | |
| Carton Dimensions (in.) | |
| Cartin Weight (lbs) |
