+1 (813) 649-889985W/68W/60W Field Selectable ED37 LED Bulb - EX39 Mogul Base - 3K/4K/5K
Suggested Accessories
Description

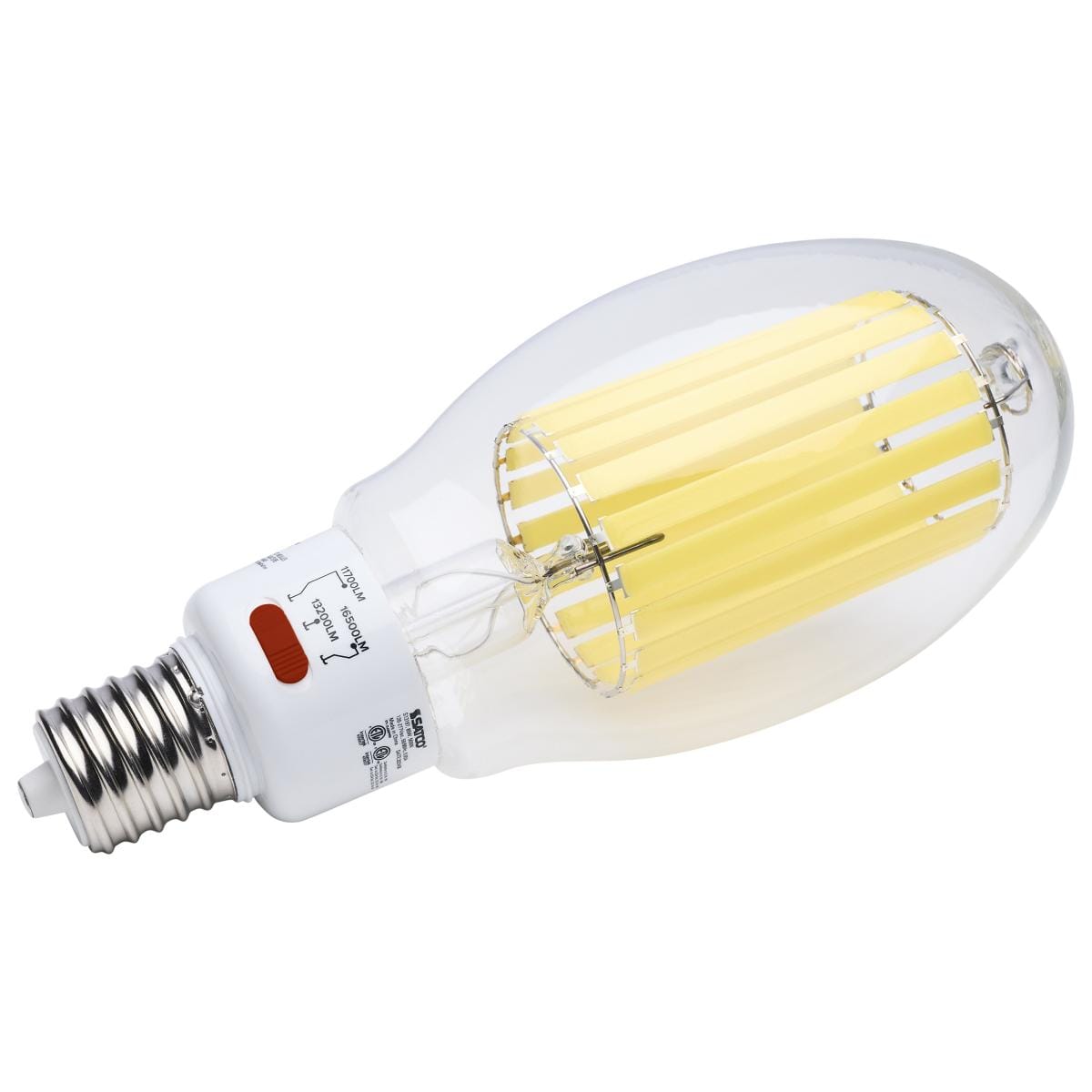

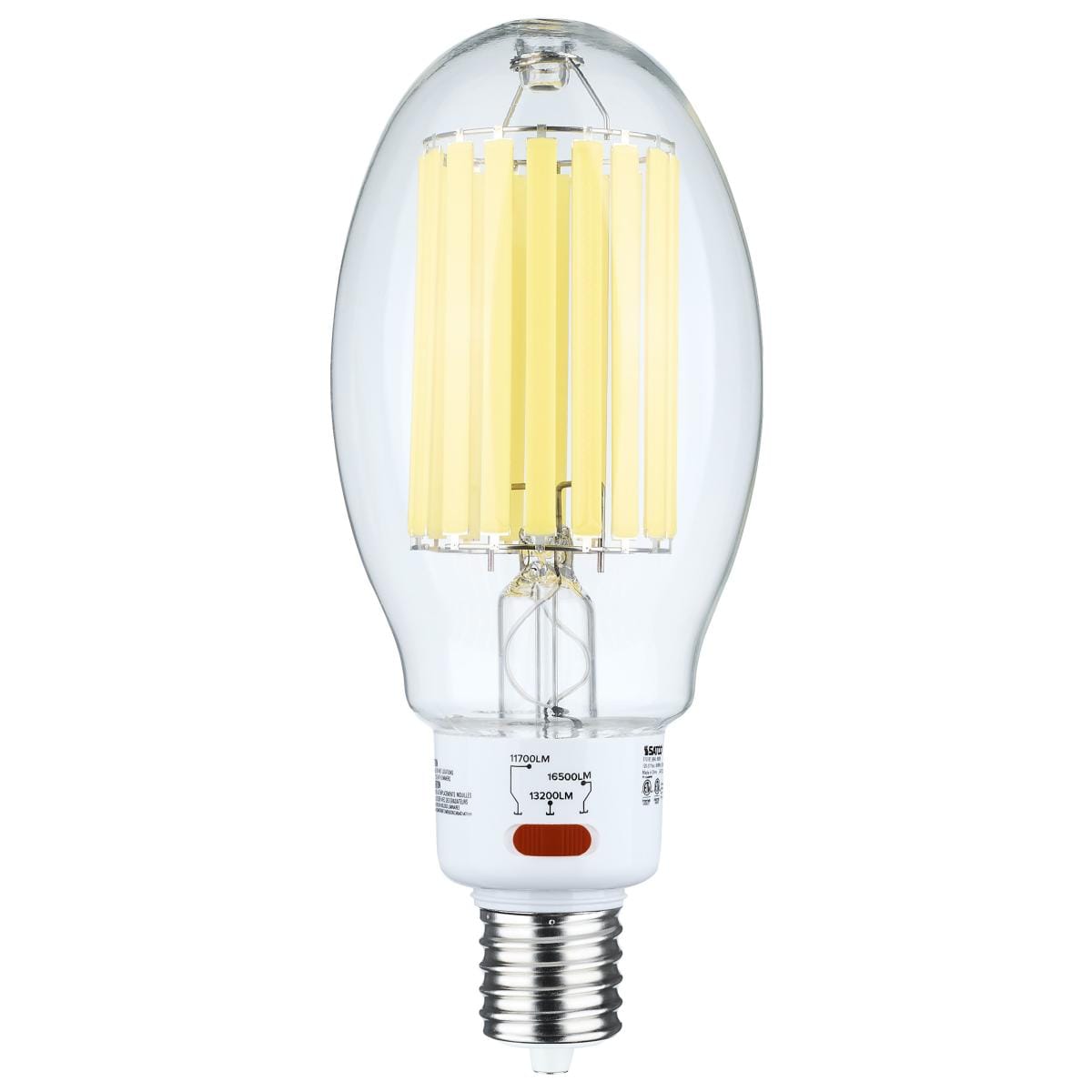

The Satco S13197 is a versatile LED HID replacement lamp designed to enhance lighting efficiency in various commercial and industrial settings. This ED37-shaped lamp features an EX39 mogul extended base and offers both wattage and color temperature selectability, allowing for customized illumination tailored to specific needs.
Key Features:
-

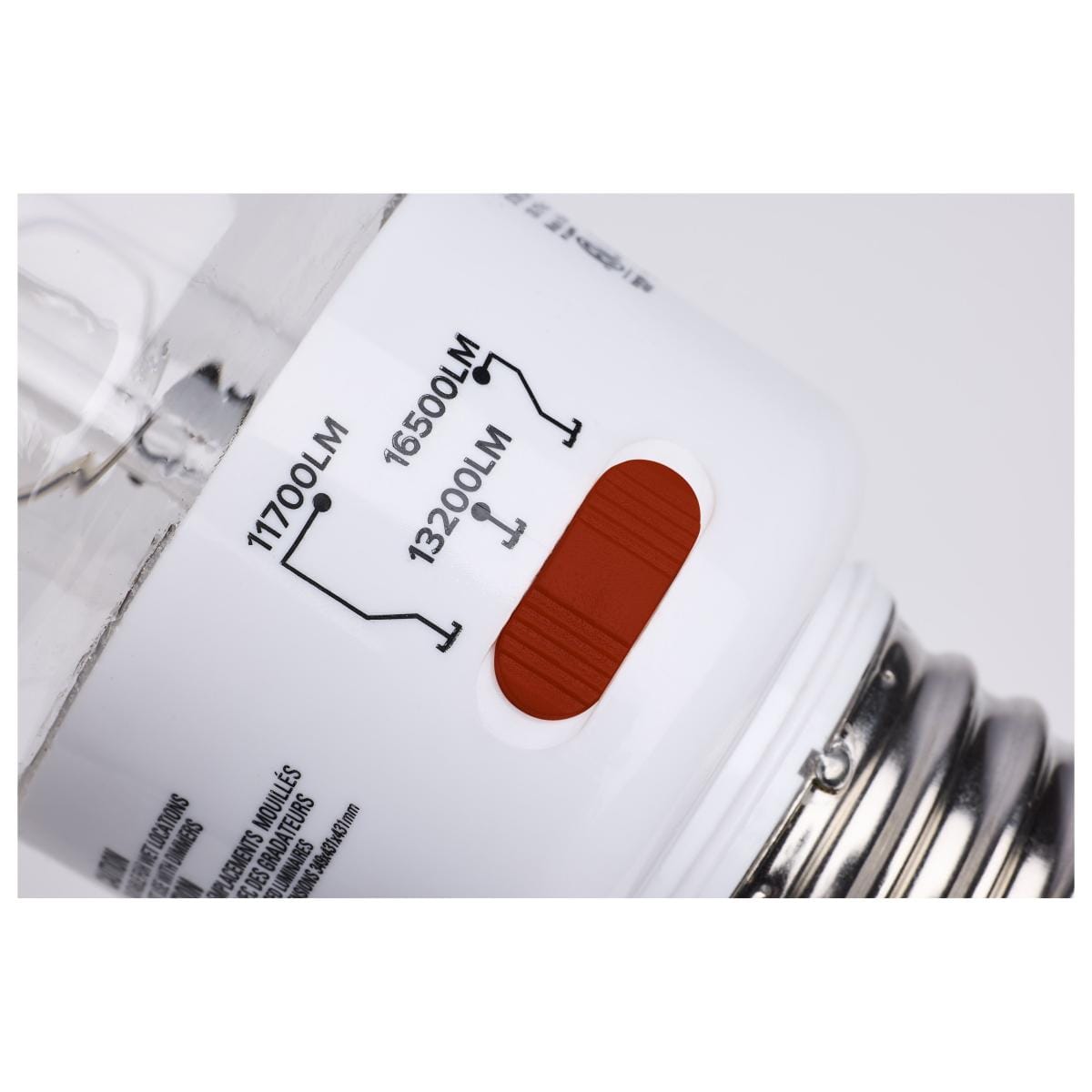

Wattage Selectable: Choose from 85W, 68W, or 60W settings, providing HID equivalents of 450W, 400W, and 320W respectively.
-
CCT Selectable: Adjust the correlated color temperature to 3000K, 4000K , or 5000K to suit different environments.
-
High Luminous Output: Delivers between 11,700 to 16,500 lumens, ensuring bright and consistent illumination.
-
Energy Efficient: Operates within a voltage range of 120V-277V with a power factor greater than 0.9, promoting energy savings and compatibility with various electrical systems.
-
Wide Beam Spread: Offers a 360-degree beam angle for comprehensive area coverage.
-
Durable Construction: Features a clear finish and robust design suitable for enclosed fixtures and wet locations.
-
Long Lifespan: Rated for 50,000 hours of use, reducing maintenance and replacement costs.
-
Surge Protection: Equipped with built-in 4KV surge protection to safeguard against voltage spikes.
-
Universal Operating Position: Can be installed in any orientation, offering flexibility in various applications.
Applications:
Ideal for use in warehouses, gymnasiums, post-top lamps, and area lighting where reliable and adjustable illumination is essential.
Upgrade your lighting system with the Satco S13196 LED HID replacement lamp to experience enhanced performance, energy efficiency, and customizable lighting options.
| Type | LED Light Bulbs | ||
| Bulb Shape | ED37 LED Bulb | ||
| Base Type | EX39 Mogul Base | ||
| Wattage | 85W / 68W / 60W | ||
| Equivalent | 450W MH / 400W MH / 320W MH | ||
| Lumens | 16,500 Lm / 13,200 Lm / 11,700 Lm | ||
| Dimmable | Dimmable | ||
| CCT | 3000K / 4000K / 5000K |
| CRI | >80 |
| Beam Angle | 360 Degrees |
| Input Voltage | 120-277VAC |
| Rated Lifetime | 50,000+ Hours |
| IP Rating | Wet Locations |
| Warranty | 5-Year Limited |
| Certification(s) |
|
Downloads
| Box Qty | 1 |
| Box Dimensions (in.) | 4.72in. x 4.72in. x 12.32in. |
| Box Weight (lbs) | 1.50 Lbs |
| Carton Qty | 12 |
| Carton Dimensions (in.) | 19.69in. x 14.96in. x 12.80in. |
| Cartin Weight (lbs) | 19.60 Lbs |
