Description

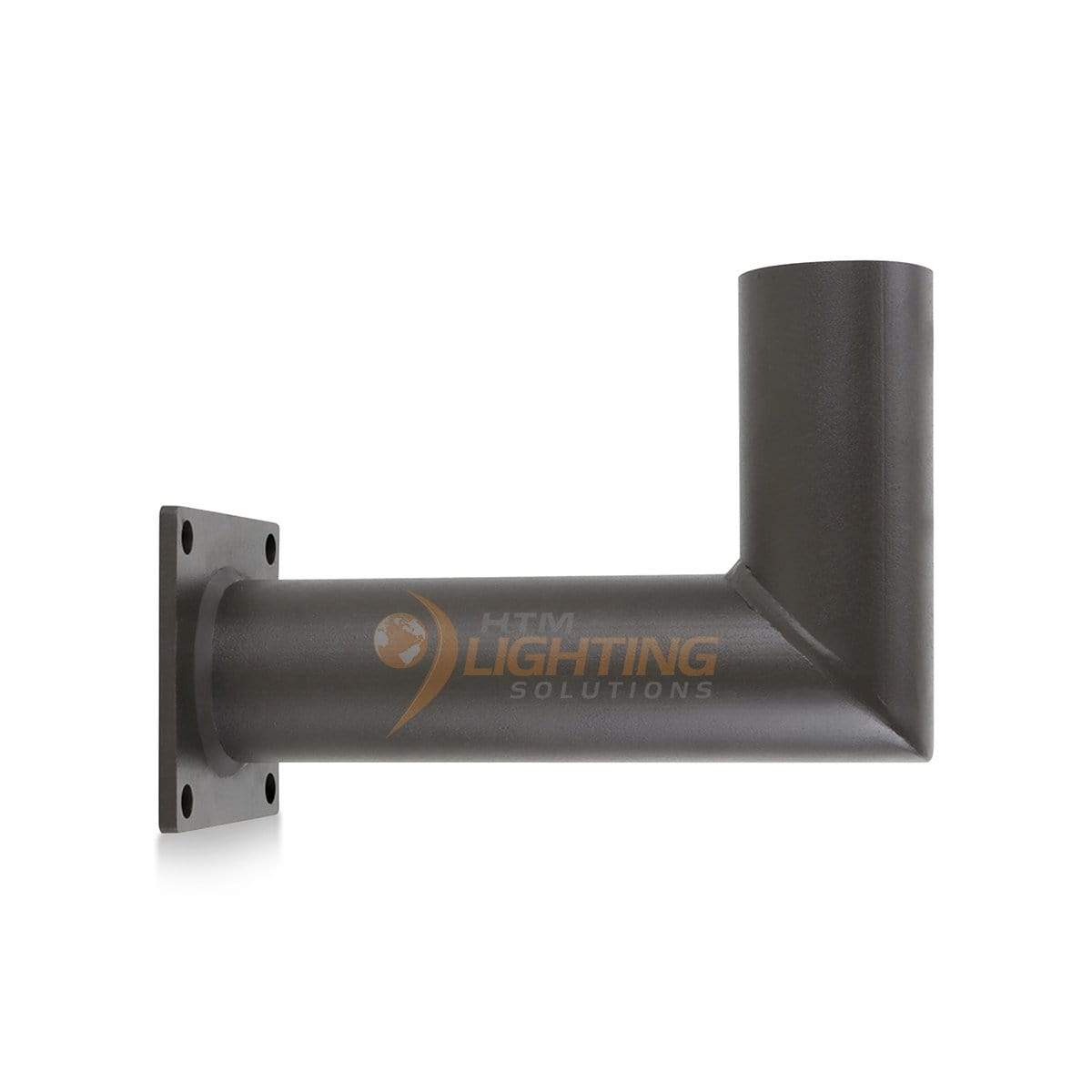

These L-Shaped Angled Brackets allow for Wall Mount and Square Pole Mount applications using Adjustable Split-Fit LED Parking Lot Fixtures.
The Heavy Duty Mounting Adaptor allows for use on Concrete Walls and Roof Mounting applications, as well as almost any 4 inch or 5 inch Steel, Aluminum, or Wood Pole!

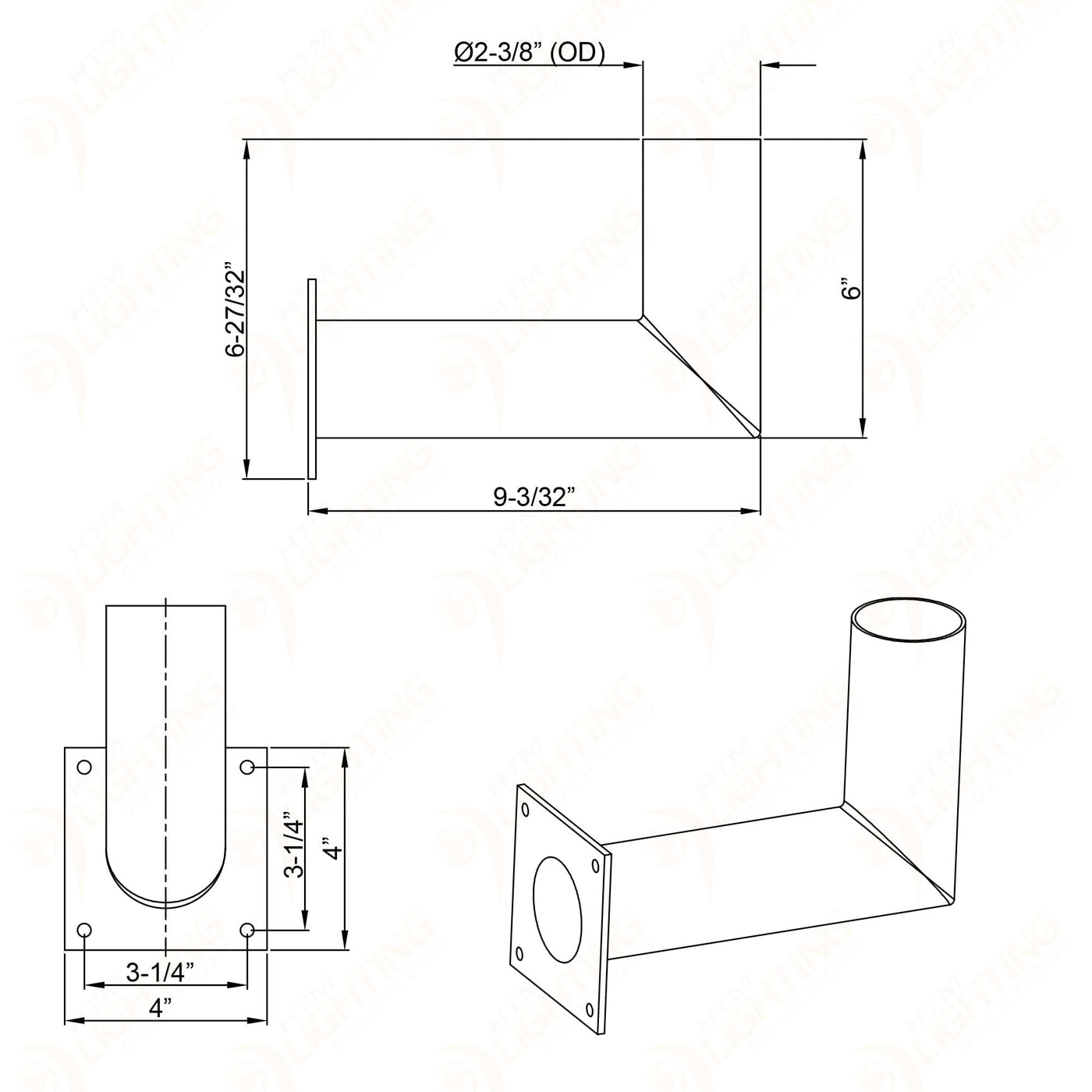

Dimensions include a total Height of 6-13/16in and 4in Total Width, with a 9-1/8in Extension from the Wall.
The mounting holes on this wall mount tenon bracket are spaced 3-1/4in apart and 3/8in diameter bolts are suggested for mounting.
| Type | Pole Mounting Accessories | ||
| Adapter Type | Split Fitter Mount | ||
| Extension Quantity | 1 | ||
| Mounting Surface | Wall Mount Surface |
| Finish | Bronze |
| Material | Steel |
| Required Pole Size | 4'' or 5'' |
| Certification(s) |
|
Downloads
| Box Qty | |
| Box Dimensions (in.) | |
| Box Weight (lbs) |
| Carton Qty | |
| Carton Dimensions (in.) | |
| Cartin Weight (lbs) |
