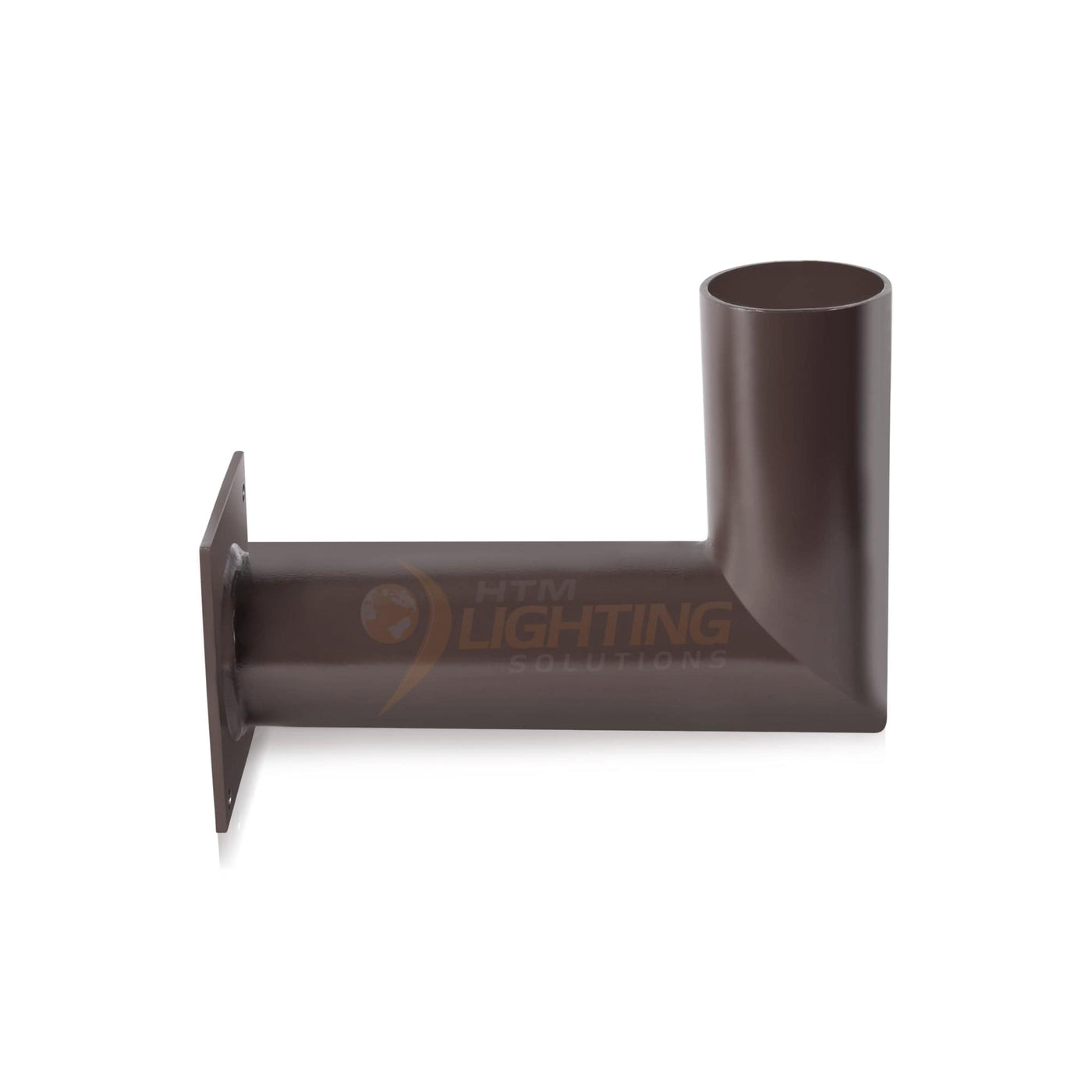

90 Degree Wall Mount Bracket with 2-3/8'' OD Tenon (V2)

90 Degree Wall Mount Bracket with 2-3/8'' OD Tenon (V2)

$34.95
SKU: WM-SP-D-V2
Maximum quantity available reached.
These L-Shaped Angled Brackets allow for Wall Mount and Square Pole Mount applications using Adjustable Split-Fit LED Parking Lot Fixtures.The Heavy Duty Mounting Adaptor allows for use on Concrete Walls and Roof Mounting applications, as well as almost any 4 inch or 5 inch Steel, Aluminum, or Wood Pole!Dimensions i... View More
These L-Shaped Angled Brackets allow for Wall Mount and Square Pole Mount applications using Adjustable Split-Fit LED Parking Lot Fixtures.The Heavy Duty Mounting Adaptor allows for use on Concrete Walls and Roof Mounting applications, as well as almost any 4 inch or 5 inch Steel, Aluminum, or Wood Pole!Dimensions i... View More
$34.95
Maximum quantity available reached.

Description

These L-Shaped Angled Brackets allow for Wall Mount and Square Pole Mount applications using Adjustable Split-Fit LED Parking Lot Fixtures.

The Heavy Duty Mounting Adaptor allows for use on Concrete Walls and Roof Mounting applications, as well as almost any 4 inch or 5 inch Steel, Aluminum, or Wood Pole!

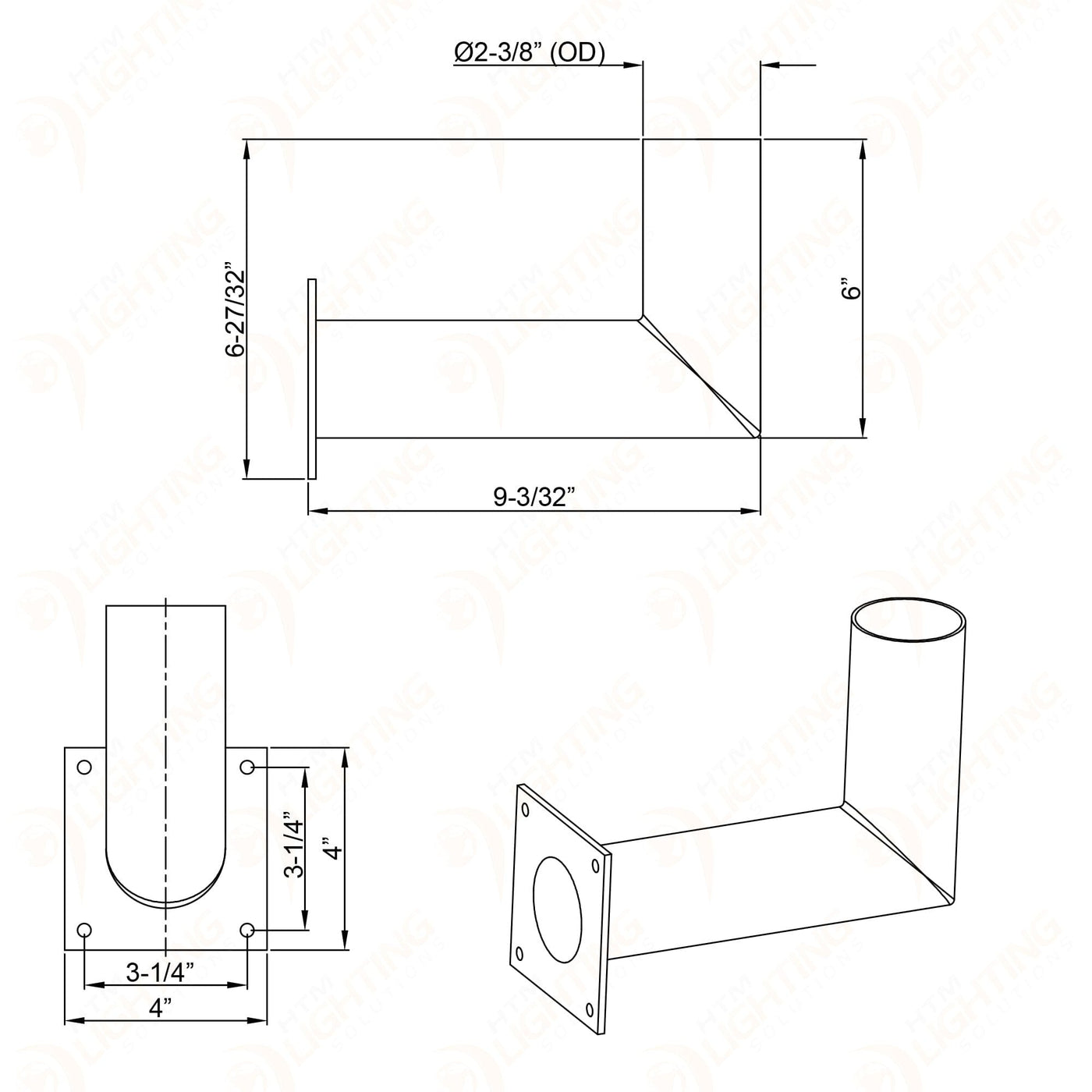

Dimensions include a total Height of 6-13/16in and 4in Total Width, with a 9-1/8in Extension from the Wall.

Type Pole Mounting Accessories
Adapter Type Split Fitter Mount
Extension Quantity 1
Mounting Surface Wall Mount Surface
Finish Bronze
Material Steel
Required Pole Size 4'' or 5''
Certification(s)

Downloads

Box Qty 1
Box Dimensions (in.) 11in x 9in x 6in
Box Weight (lbs) 4.60 lbs
Carton Qty 4
Carton Dimensions (in.) 20in x 11in x 8in
Cartin Weight (lbs) 16.45 lbs
