- Microwave Bi-Level + Daylight Motion Sensor: Twist-C
Description

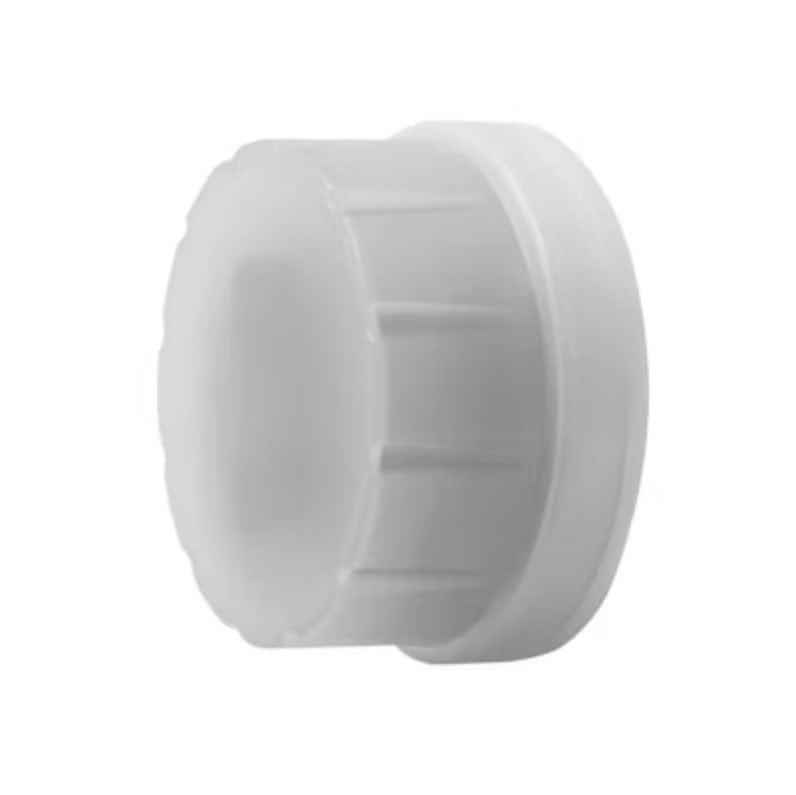

The S-TWC-MW-1 is a motion sensor that dims lighting from high to low based on movement.

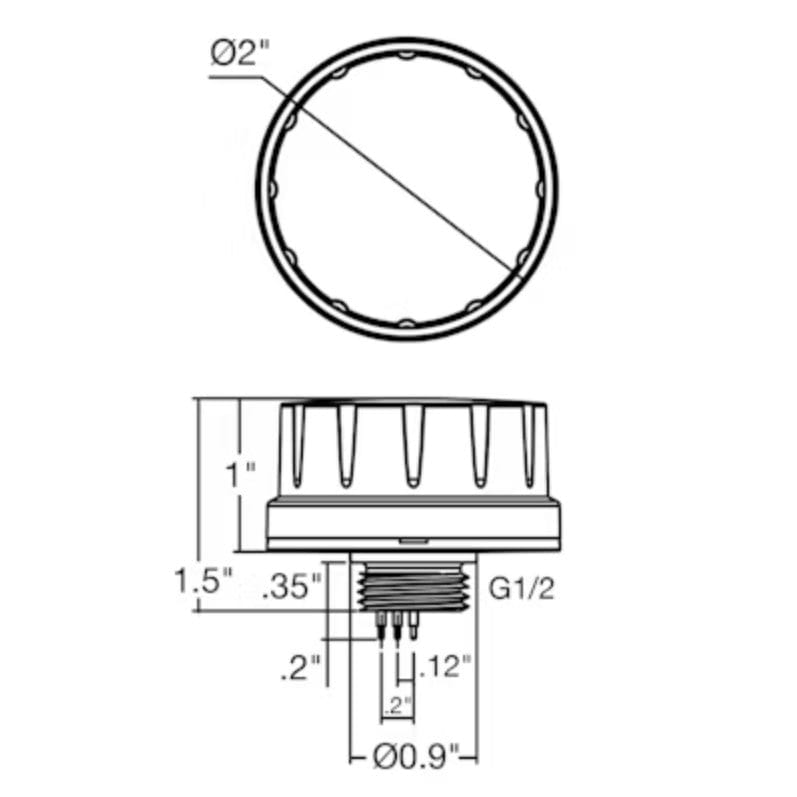

This slim, low profile sensor is designed for installation inside the bottom of a light fixture body.
The sensors use microwave sensing technology that reacts to changes in movement within the coverage area.
Once the sensor stops detecting movement and the time delay elapses lights will go from high to low mode and eventually to an OFF position if it is desired.
Sensors must directly “see” motion of a person or moving object to detect them, careful consideration must be given to sensor luminaire placement and lens selection.
Avoid placing the sensor where obstructions may block the sensor’s line of sight.
Default Settings:
Hold-time: 30min.
Set point ON: 50 lux
Set Point OFF: 300 lux
Stand-by Dim: 10%
Stand-by period: +∞
Remote Control (Sold Separately): S-LINE-R
