4" Square Pole Mount With 2-3/8" Vertical Tenon (V2)

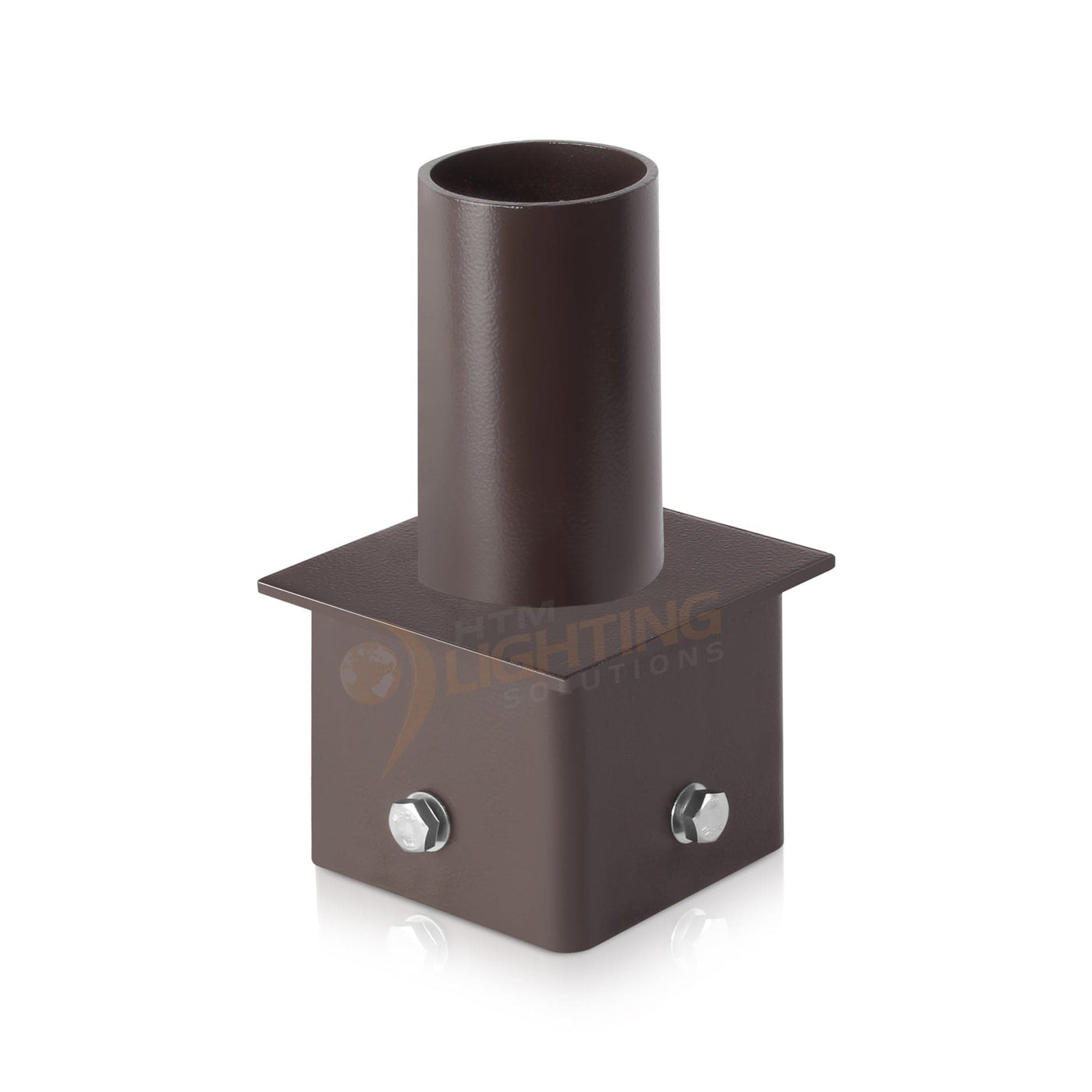

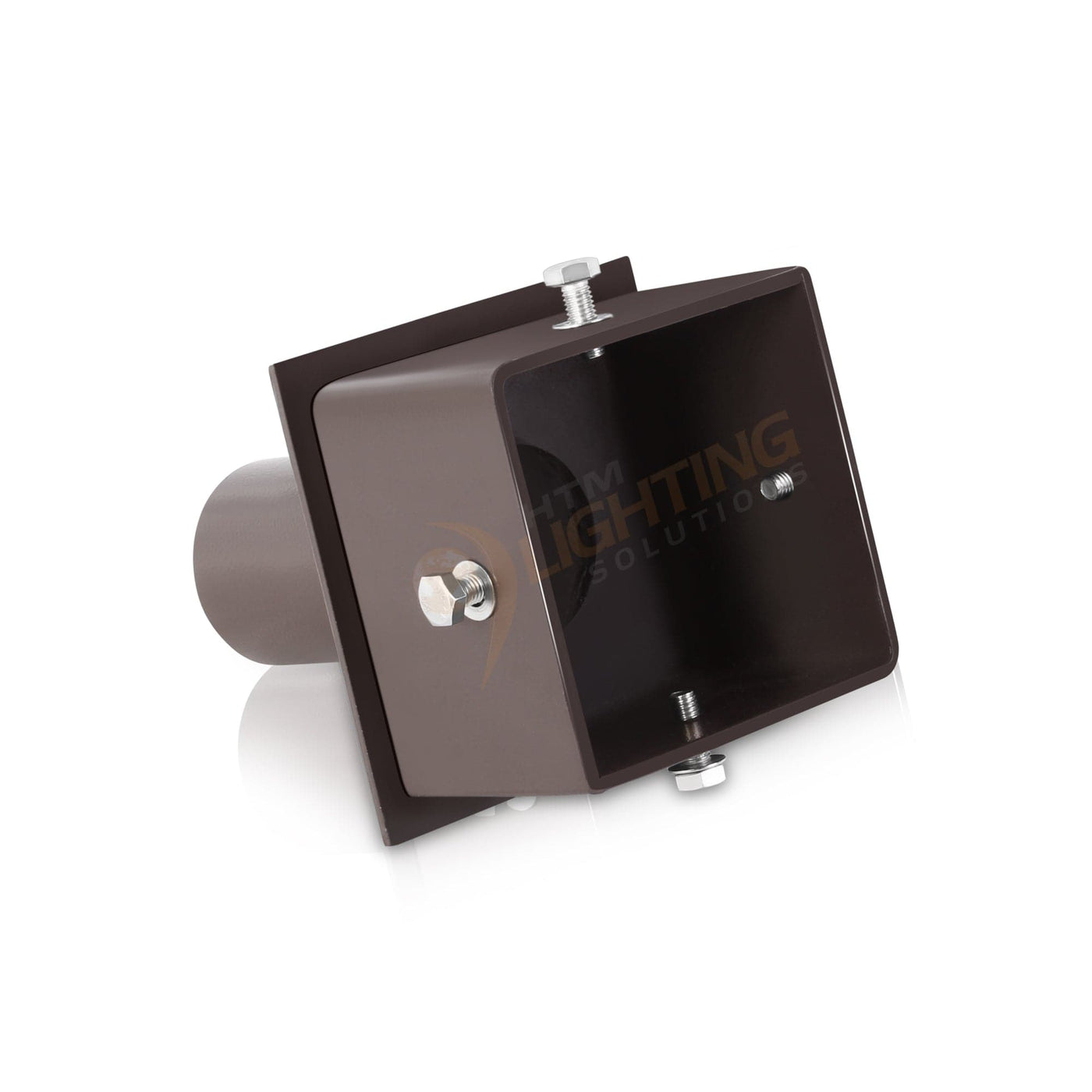

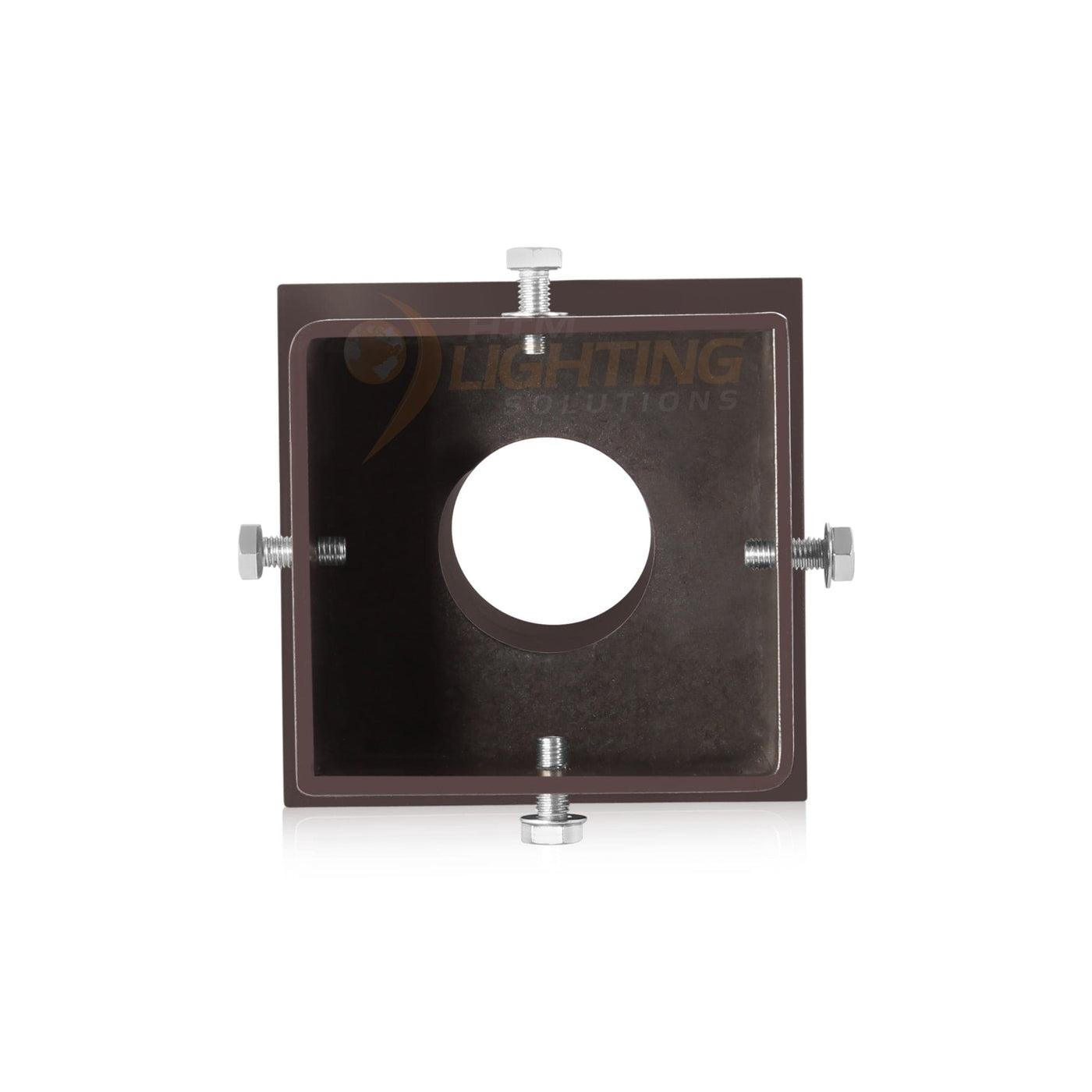

This Heavy Duty Steel Mounting Bracket is made to fit into any Concrete, Fiberglass, or Steel 4in Square Pole. Hardware Kit is included for a quick and easy installation!
Includes a 2-3/8in Vertical Tenon for mounting any compatible Adjustable Split-Fit LED Parking Lot Fixtures.

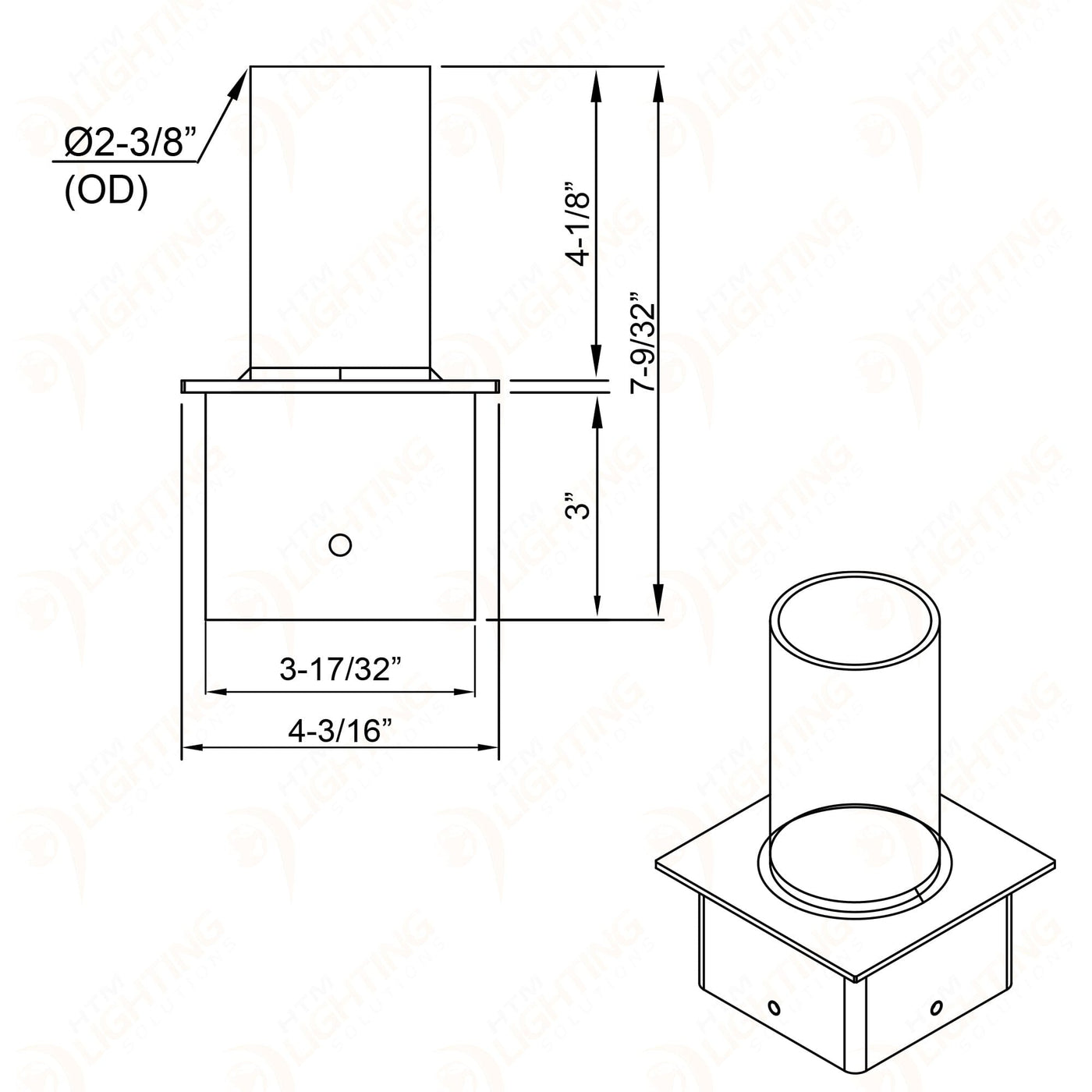

The 4x4 pole mounting bracket adapter fits into the top of a 4in Square Pole and has a total Height of 7-9/32in. The Tenon measures 2-3/8in with a Height of 4-1/8in.
|Type||Pole Mounting Accessories|
|Adapter Type||Vertical Tenon|
|Mounting Surface||4in. Square Pole|
|Required Pole Size||4in.|
|Box Dimensions (in.)||11in x 9in x 6in|
|Box Weight (lbs)||4.20 Lbs|
|Carton Dimensions (in.)||30in x 12in x 10in|
|Cartin Weight (lbs)||37.25 lbs|
