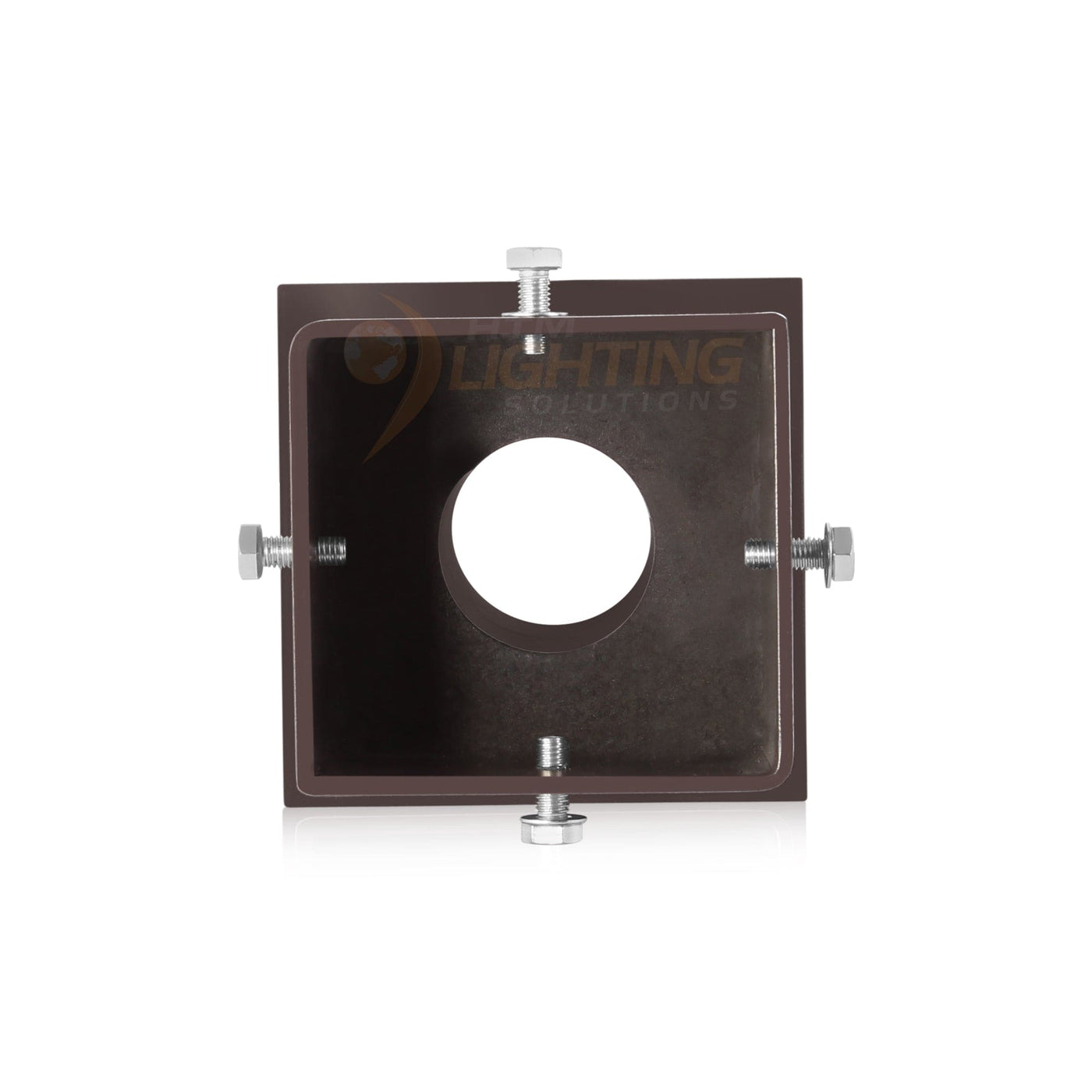

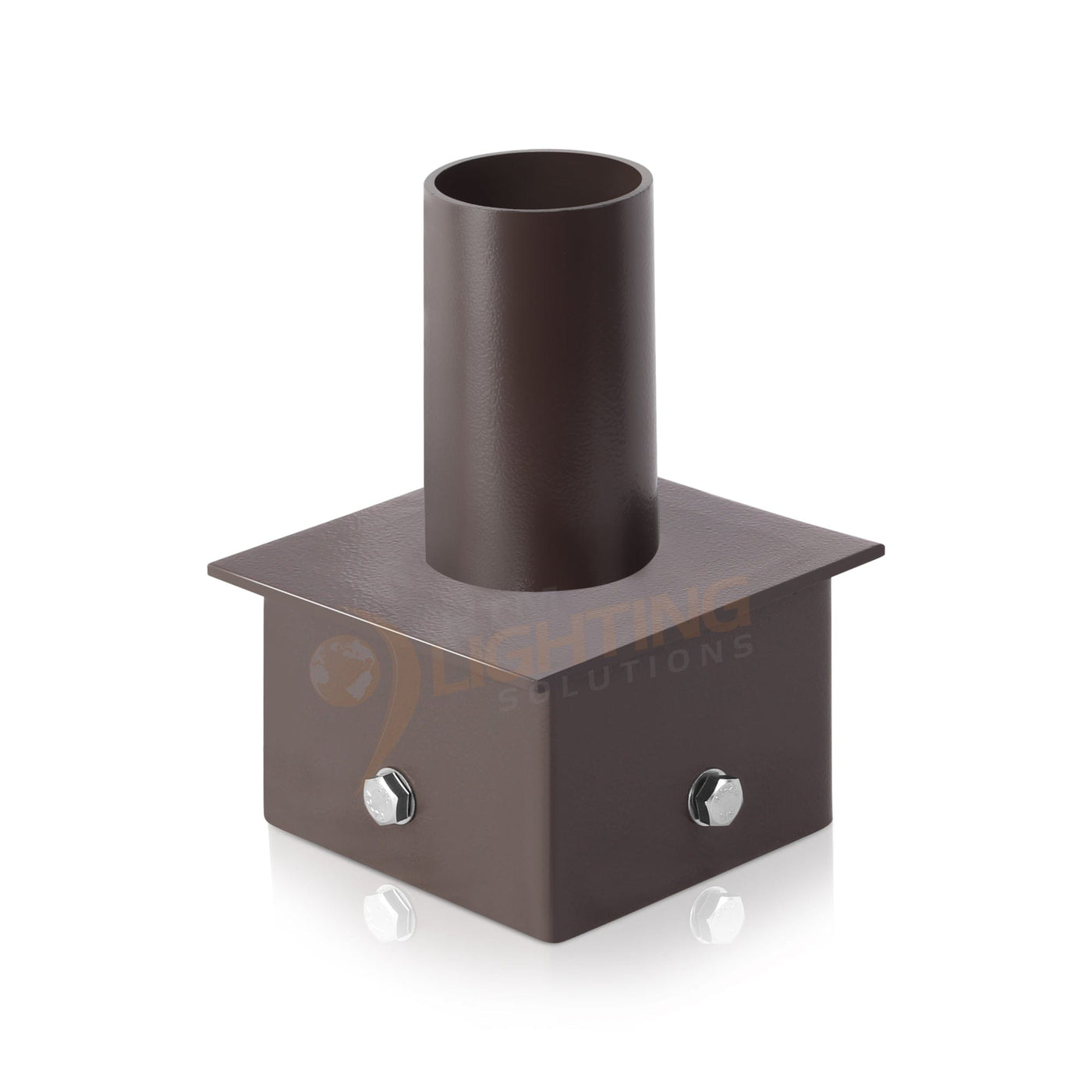

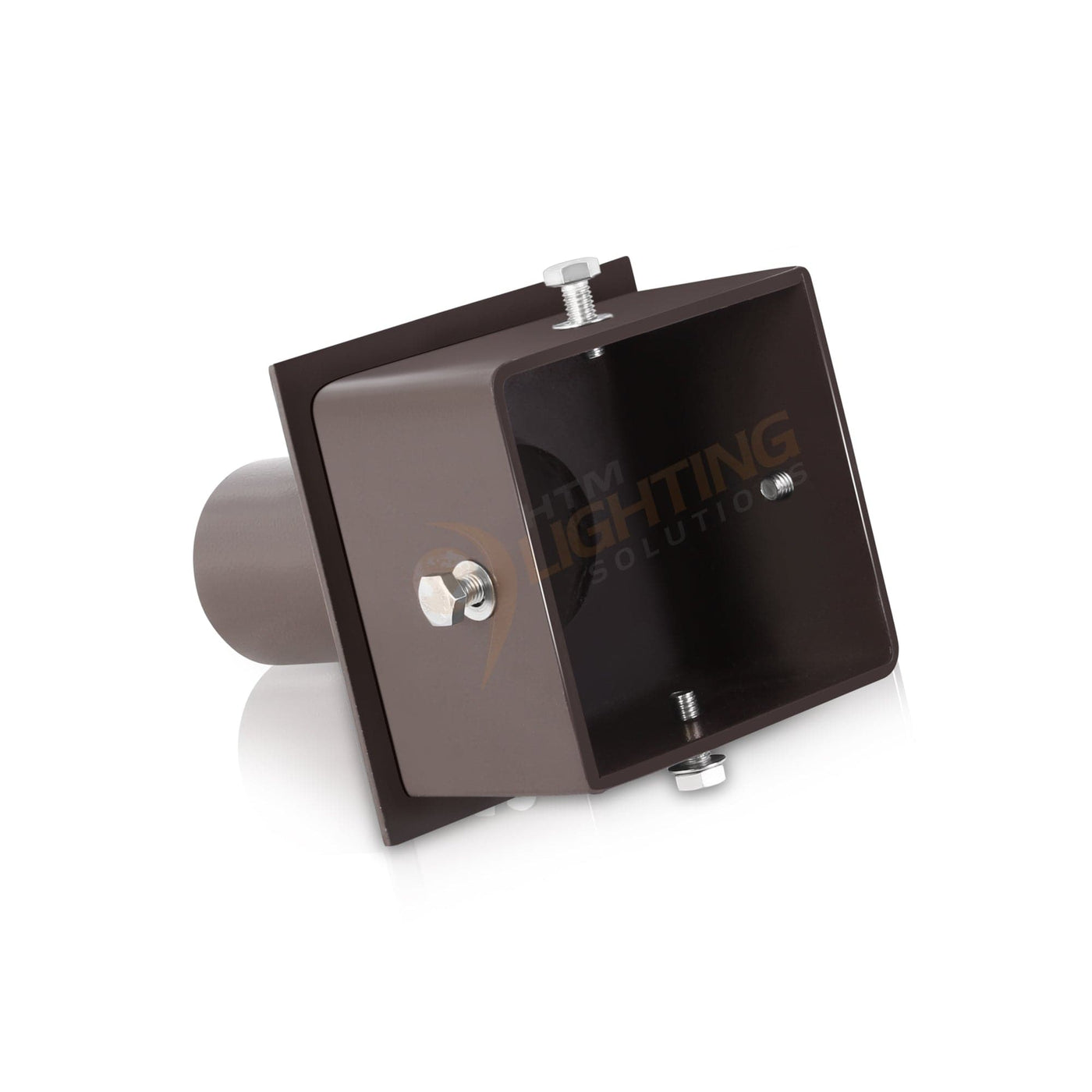

5" Square Pole Mount With 2-3/8" Vertical Tenon (V2)
This Heavy Duty Steel Mounting Bracket is made to fit into any 5in Square Fiberglass, Concrete, or Steel Pole, and Hardware Kit is included for a quick and easy installation!
Includes a 2-3/8in Vertical Tenon for parking lot pole mount commercial outdoor lighting applications using Adjustable Split-Fit LED Parking Lot Fixtures.

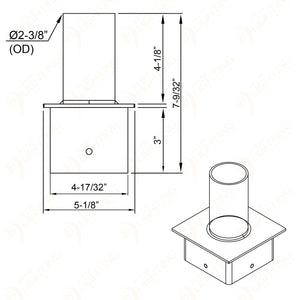

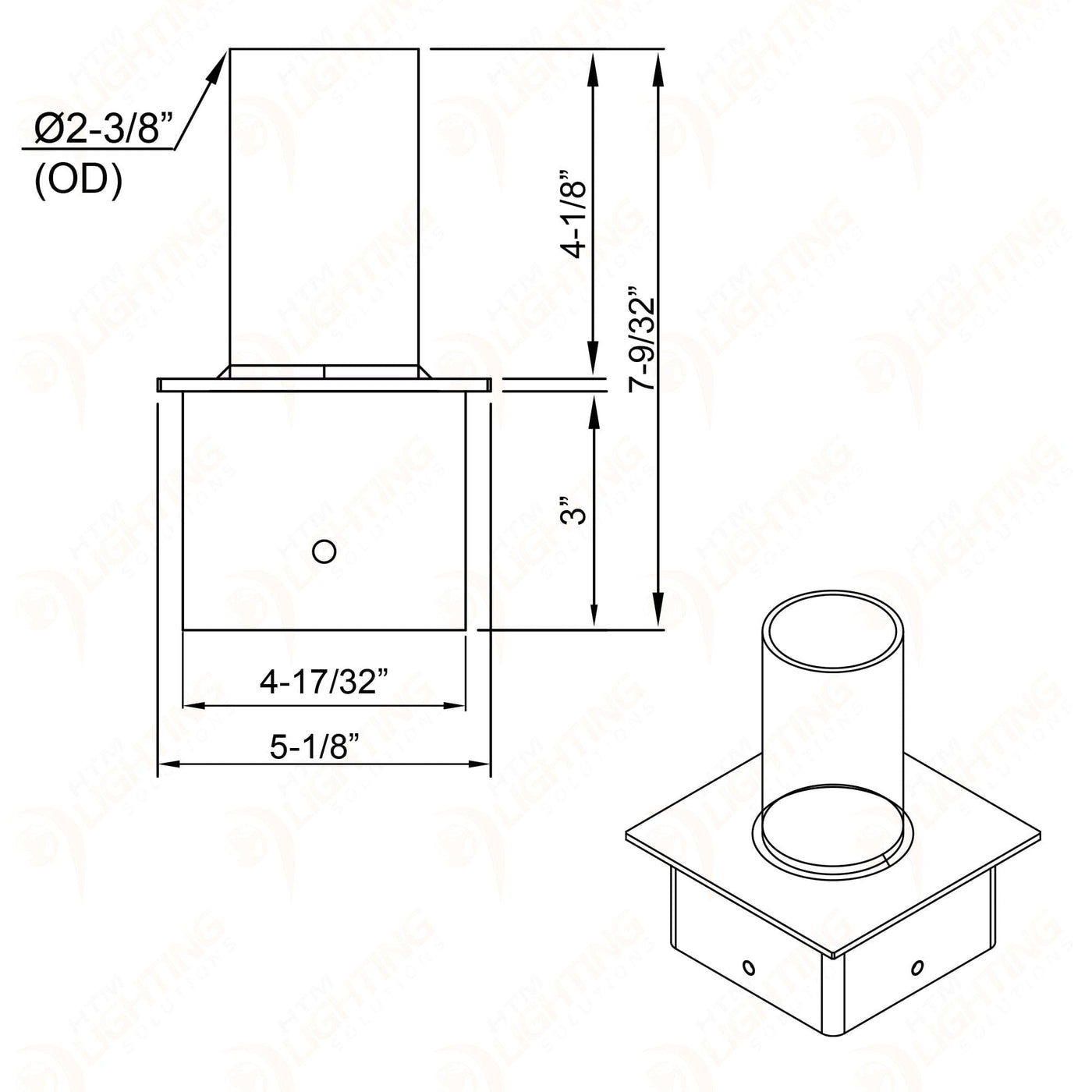

The 5x5 pole mounting bracket fits into the top of a 5in Square Pole and has a total Height of 7-9/32in. The Tenon measures 2-3/8in with a Height of 4-1/8in.
|Type||Pole Mounting Accessories|
|Adapter Type||Vertical Tenon|
|Mounting Surface||5in Square Pole|
|Required Pole Size||5in|
|Box Dimensions (in.)||11in x 9in x 6in|
|Box Weight (lbs)||5.20 lbs|
|Carton Dimensions (in.)||30in 12in x 10in|
|Cartin Weight (lbs)||47.60 lbs|
