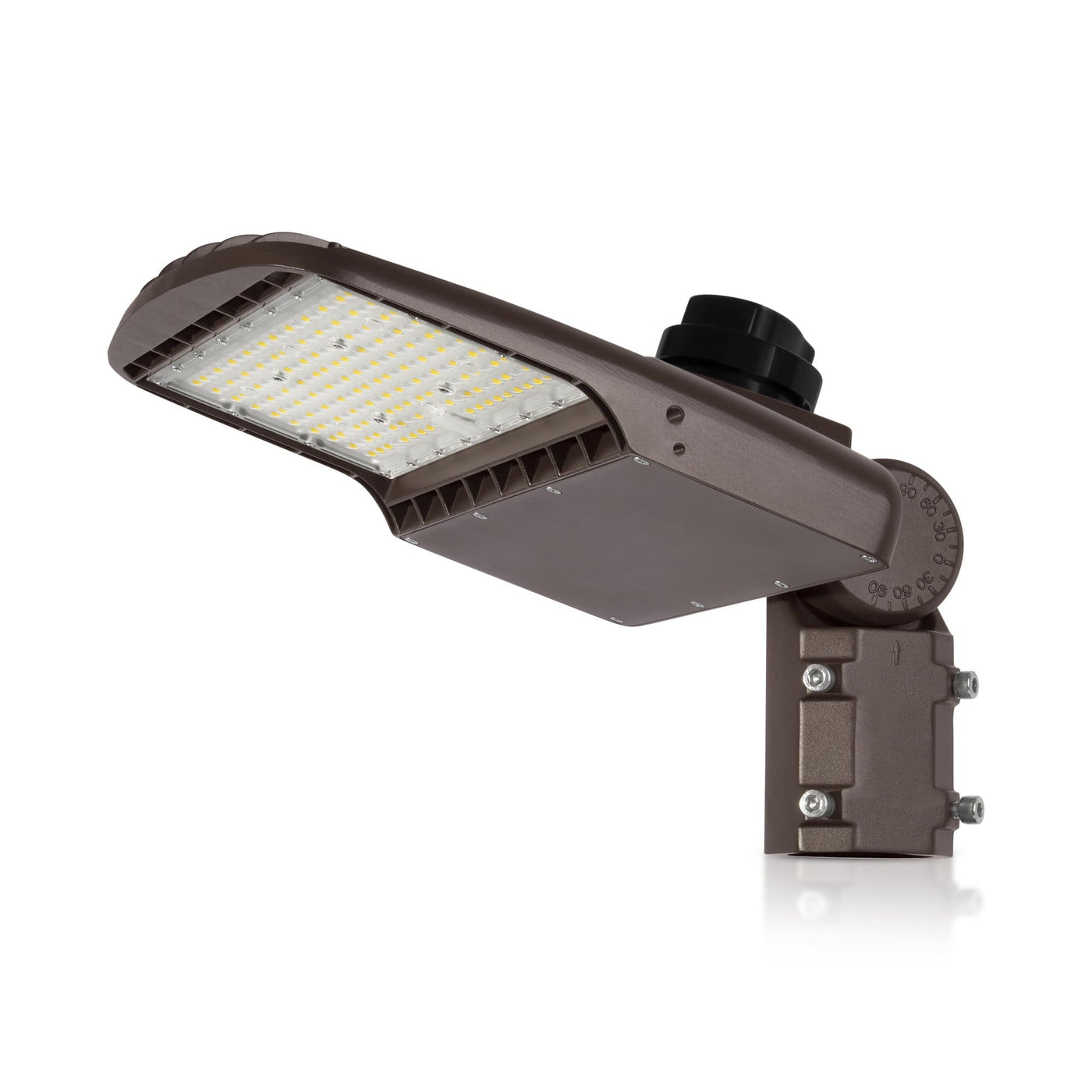

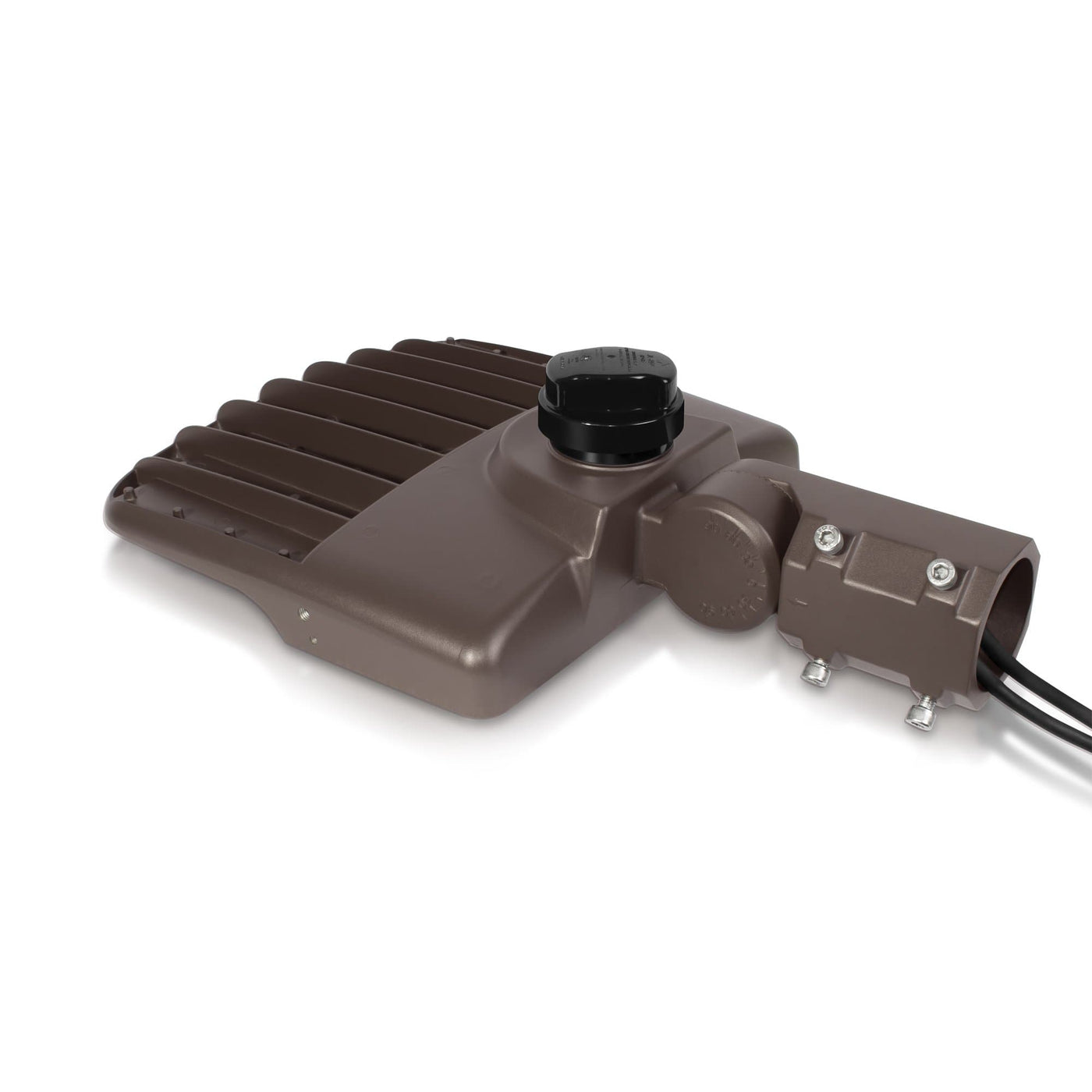

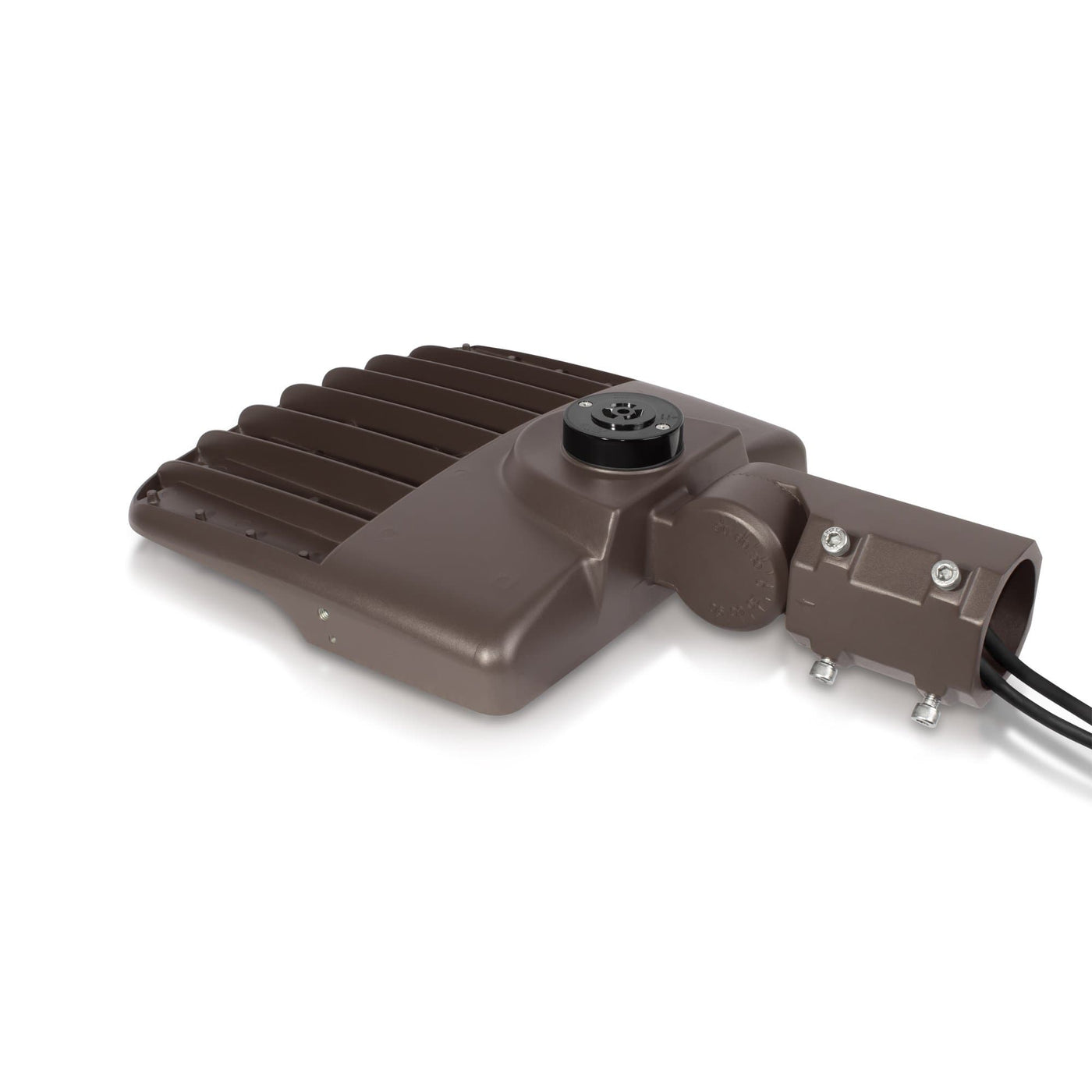

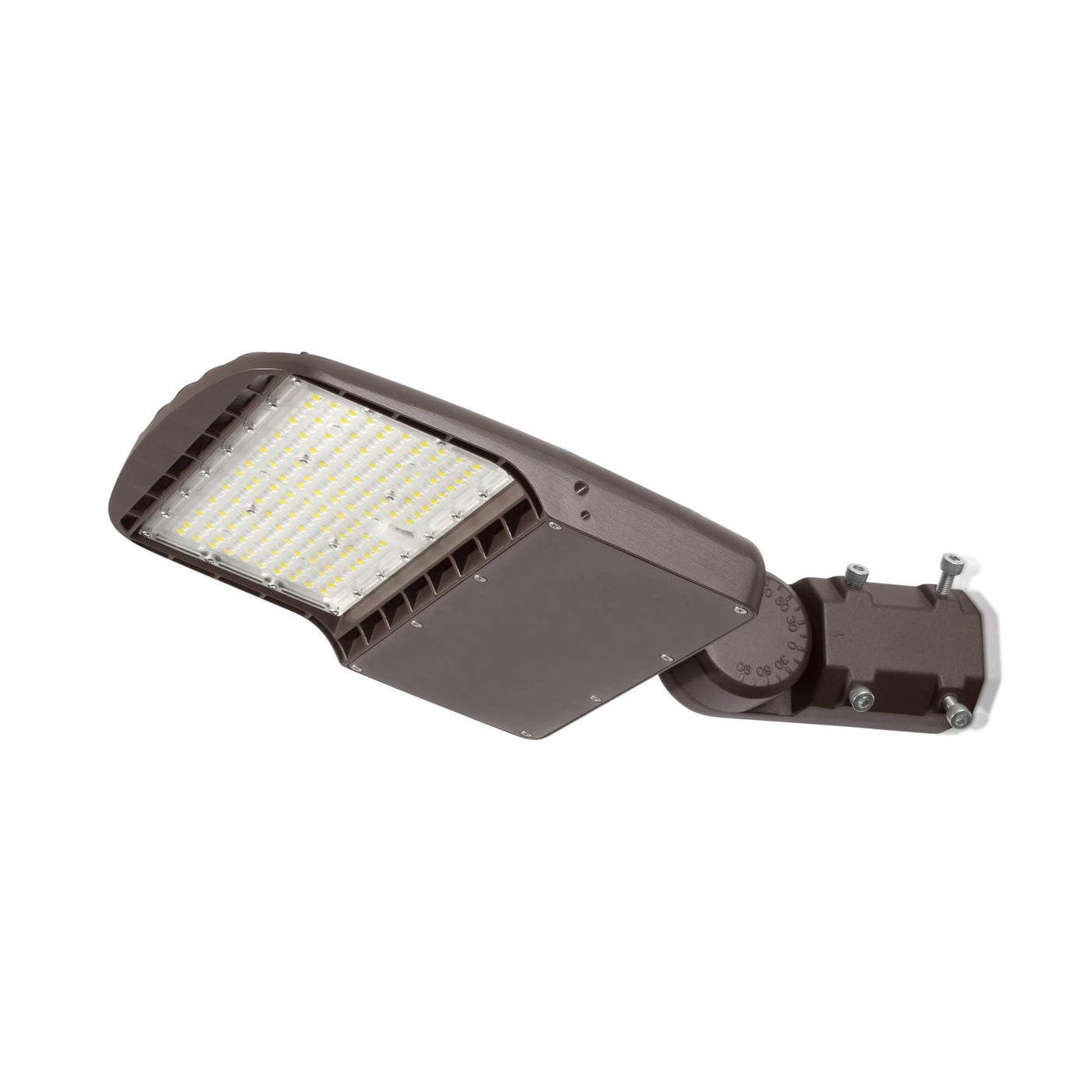

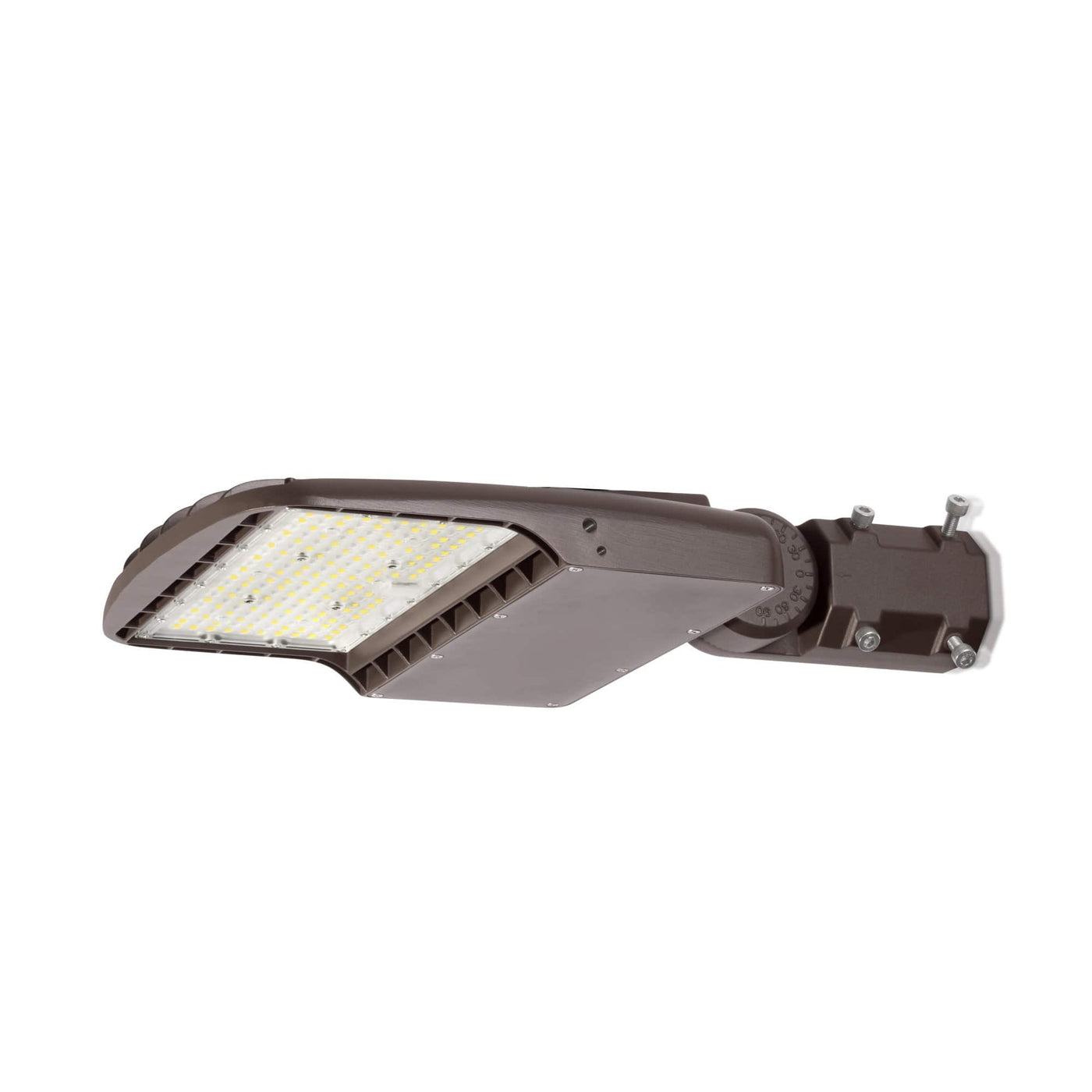

Sign In150W LED Parking Lot Light - Split Fit Mount - 21,000lm - 277/480VAC Shorting Cap - 5000K - DLC 5.1
⚡ HV
Description
150 Watt LED Parking Garage Light is a great solution with its included Adjustable Split Fit Mount bracket for 277-480VAC high voltage 400W-500W MH/HPS Parking Lot Light fixture replacement.
The LED Shoe Box Light Fixtures are easy to install and operate, with no light flickering and no humming. These energy saving and eco-friendly lights have a lifespan of 50,000+ hours with a power factor of >90%.
HTM Lighting Solutions' 150W LED Shoe Box Light can be used in various situations, including but not limited to outdoor basketball courts, school playgrounds, outdoor stadiums, parking lots, soccer fields, and street lamps. These powerful lights create a drastically brighter, safer, and illuminated environment.
Features:
- Adjustable Split Fit Mount which easily fits over 2-3/8" Tenons
- 277-480VAC Driver & Shorting Cap, which can be replaced with a 277-480VAC Photocell (Part# HTM-SBP277480)
- 10kV Built-in Surge Protector for additional layer of safety
- Type III Light Distribution Achieves over 140lm/w Efficiency putting out 21,000lm
- 5000K CCT (Cool White) with CRI>70
- Only 11 lbs Making it a Perfect replacement for 400W-500W MH/HPS Cobra Head, Parking Lot Lights, Shoe Boxes
- UL Listed & DLC Premium for Federal and State Rebates
- 5-Year HTM Lighting Solutions Warranty
| Type | LED Shoe Box | ||

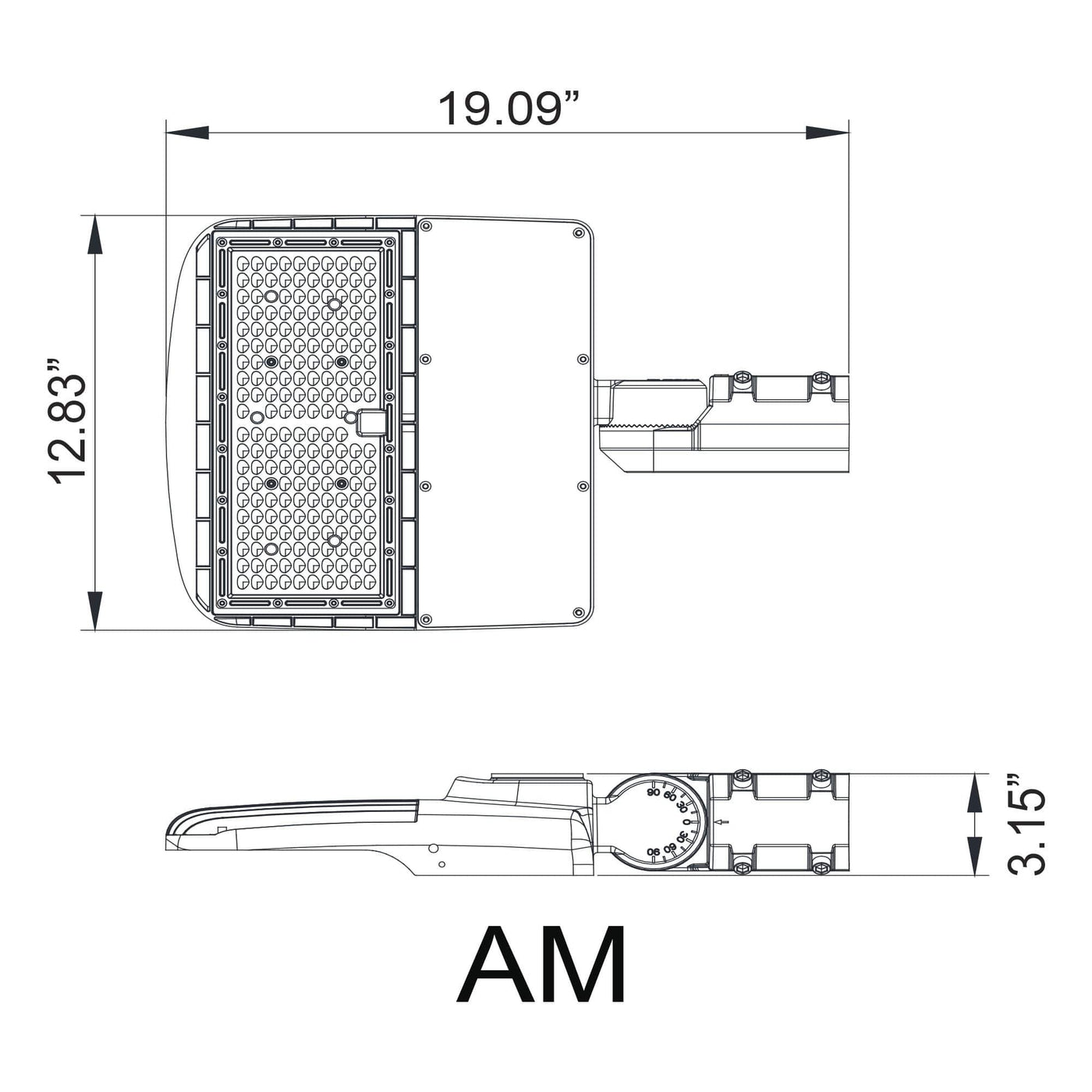

| Item Dimensions | 19.1in. x 12.83in. x 3.15in. | ||
| Wattage | 150W | ||
| Equivalent | 400-500W | ||
| CCT | 5000K | ||
| Lumens | 21,000 Lm | ||
| CRI | > 70 | ||
| Input Voltage | 277-480VAC | ||
| Finish | Bronze |
| Material | Aluminum |
| Rated Lifetime | 50,000+ Hours |
| Beam Angle | IESNA Type III (160 x 96) |
| Lens Type | Type III Distribution |
| Mounting Type | Adjustable Split Fit Mount |
| IP Rating | IP65 |
| Warranty | 5-Year Limited |
| Certification(s) |
|
Downloads
Download Datasheet
Download Instructions
Database of State Incentives
Watch Product Video×
| Box Qty | 1 |
| Box Dimensions (in.) | 21.85in x 14.76in x 6.30in |
| Box Weight (lbs) | 12.80 Lbs |
| Carton Qty | 2 |
| Carton Dimensions (in.) | 22in x 16in x 14in |
| Cartin Weight (lbs) | 29.9 lbs |
