+1 (813) 649-889925W/20W/13W LED Bullet Flood Light - 100-277VAC - 3K/4K/5K CCT - NEMA 5H5V Beam Angle - Brown Finish
Description
HTM Lighting Solutions’s Wattage and CCT Tunable LED Bullet Flood Light is the ideal lighting solution for outdoor landscape and general flood lighting in Commercial, Residential, and Industrial applications!
Easy to install and operate, these bright and efficient LED Area Lights have a Medium-Wide beam spread and can be used in most general-use flood lighting.
Eliminate the need for buying different bulbs and wattages, thanks to our Wattage Selection from 25W, 20W and 13W, along with 3-CCT Tuning between 3000K Warm White, 4000K Cool White, and 5000K Daylight White for just about any use!
These fixtures also feature a built-in shroud for vertical cutoff and come with a 1/2in. NPT threaded male knuckle mount for versatile installation options using our compatible Ground Stakes or Electrical Box Covers!
Uses for our LED Bullet Flood Lights are nearly endless, including Sign Lighting, Landscape Lighting, Ambient Pathway Lighting, Commercial Security Lighting, and so much more!
These fixtures are cUL Listed and are IP65 Rated for Outdoor Use in Wet Locations!
| Type | LED Flood Light | ||
| Item Dimensions | 4in. x 4in. x 6.3in. | ||
| Wattage | 25W / 20W / 13W | ||
| Equivalent | 150W MH / 100W MH / 75W MH | ||
| CCT | 3000K / 4000K / 5000K | ||
| Lumens | 1,664 - 3,500 Lm | ||
| CRI | >80 | ||
| Input Voltage | 100-277VAC | ||
| Finish | Brown |
| Material | Die-Cast Aluminum |
| Rated Lifetime | 50,000+ Hours |
| Beam Angle | NEMA 5H5V Medium Wide Beam |
| Lens Type | Polycarbonate Optical Lens w/ UV Stabilizers |
| Mounting Type | 1/2” NPT |
| IP Rating | IP65 for Wet Locations |
| Warranty | 5-Year Limited |
| Certification(s) |
|
Downloads
Download Datasheet
Download Instructions
Watch Product Video×
| Box Qty | 1 |
| Box Dimensions (in.) | 12in. x 9in. x 4in. |
| Box Weight (lbs) | 1.75 Lbs |
| Carton Qty | 12 |
| Carton Dimensions (in.) | 18in. x 14in. x 8in. |
| Cartin Weight (lbs) | 13.5 Lbs |
Customer Reviews
The wires are to short
Installed these sign lights about a week ago. The lights are very bright and look good. My concern is whether they are waterproof for outdoor use. The o-rings at both the knuckle and the port to change the light settings both squeeze out when they are tightened. If you look closely at the picture of the light on the website, you can see the o-ring at the knuckle has been squeezed out and is not going to offer a watertight seal. Unfortunately, I did not see this until after I bought and installed the lights and had the o-rings not seal.

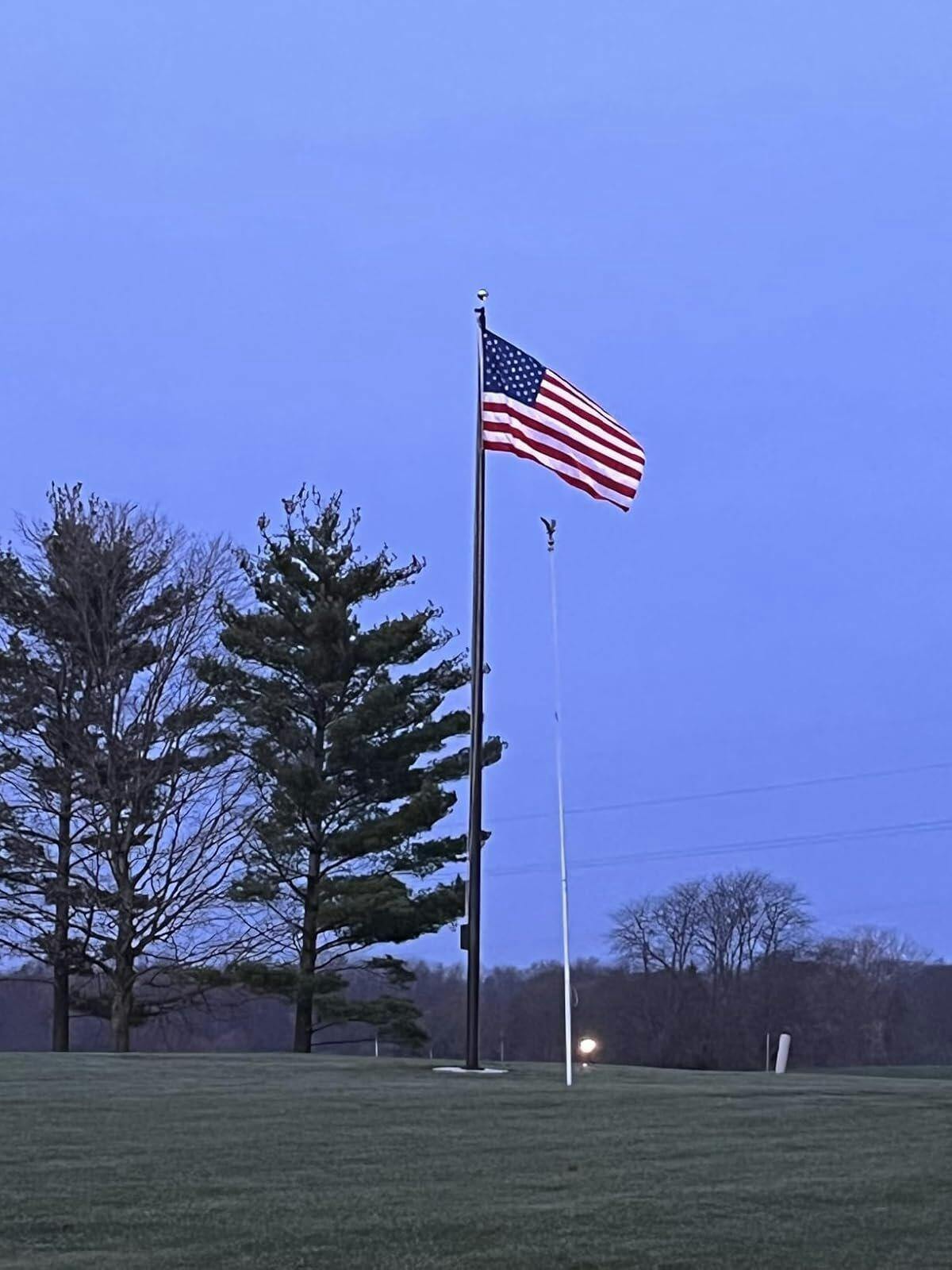

Absolutely amazing on our 30’ flag pole with an American Flag
Installed these lights several days ago. The wattage and color selection is a nice option and they light our sign nicely. My concern is, the rubber gaskets/o-rings at the knuckle and the screw that tightens the knuckle popped out as soon as the screw was tightened. These o-rings are meant to prevent water from penetrating the fixture but simply do not do the job. I ended up coating, with silicone, over the screw heads and knuckle joint in an attempt to waterproof them. Time will tell if they leak.
