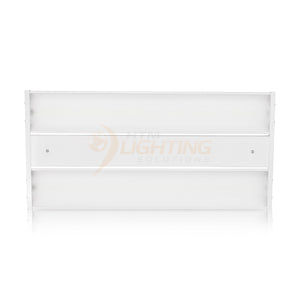

Sign In110W LED Linear High Bay - 16,000lm - 5000K - 100-277VAC - Chain Mount - DLC Qualified - White
Description

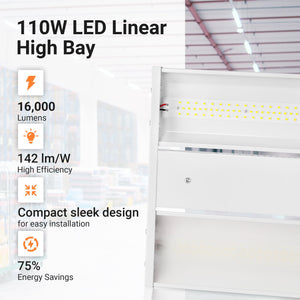

110W LED Linear High Bay Lights are compact and sleek fixtures putting out up to 16,000 lumens while maintaining a CRI > 80 of neat, white light.
With an efficiency exceeding 135-142lm/W and a CRI > 80, LED Linear High Bays are a must when considering a replacement for outdated metal halide fixtures. The linear feature of the 110W LED high bay fixture with a 90 Degree Beam Angle enables for better light distribution throughout the targeted area.
LED Linear High Bay Light Fixtures are versatile and can be used in a wide array of applications, such as warehouse lighting, gymnasium lighting, supermarkets, workshops, and exhibition halls among many other applications!
Features:
- 175W to 250W Metal Halide Replacement

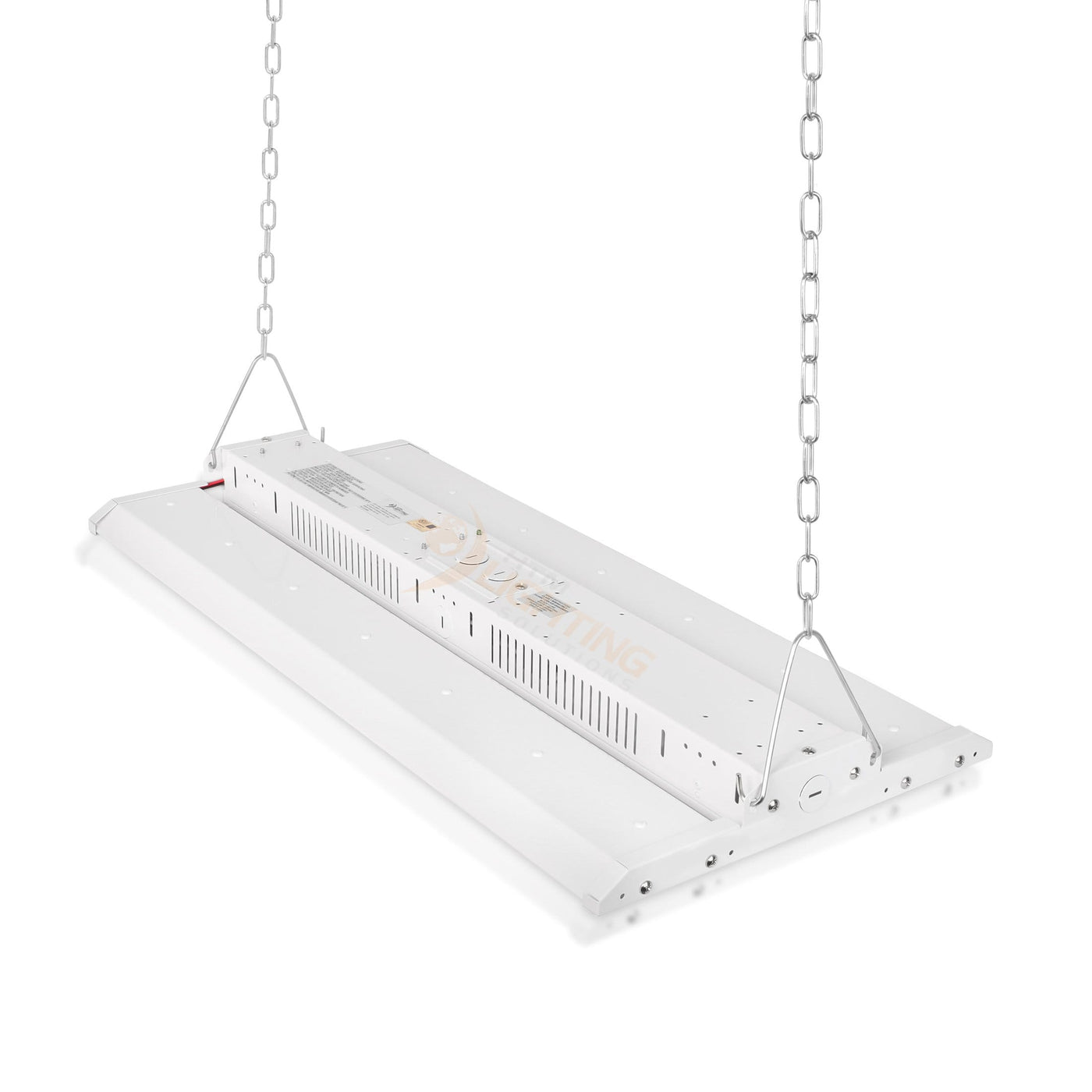

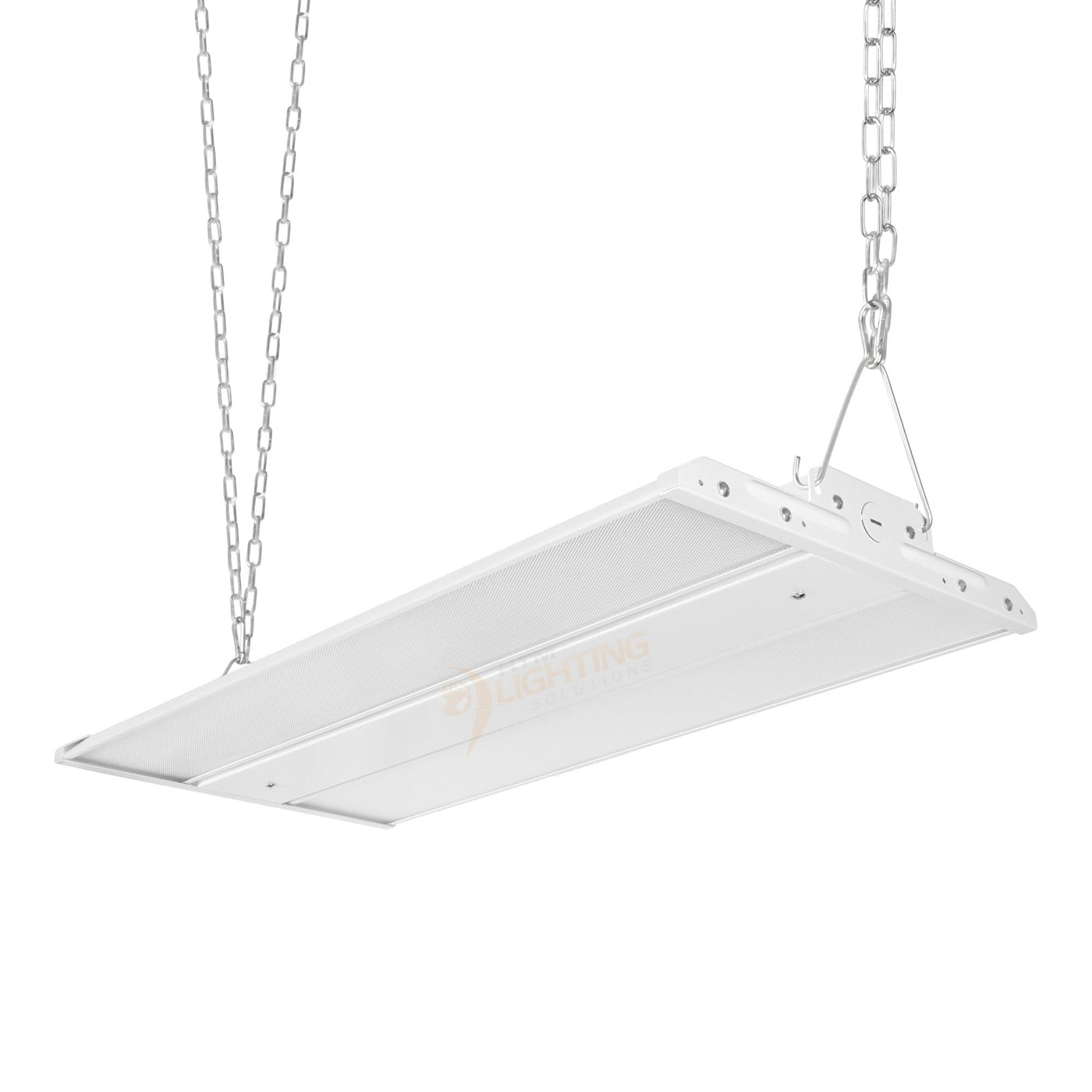

- One-Person Easy Installation Using 40in. Chain with Hooks
- 5-Year Worry Free Warranty
- 5,000K Cool White Color Temperature
- CRI > 80 to display True Color Rendering

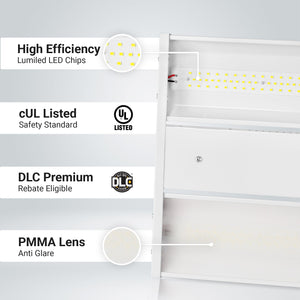

- PMMA Lens Diffuser for proper even light distributions.
- 100-277VAC Driver with Built-In Surge Protection of L/N-PE: 4kV, L-N: 2kV
- 1-10V Dimming Standard
- IP20 Rated for Dry Locations
- Compatible with Occupancy Sensor, Stand-By Dimming Level, And Daylight Sensors
- UGR <25 (X=4H, Y=8H; S/H=1; Reflectances: 70%/50%/20%)
- Color Consistency < 6 SDCM
- DLC Premium 5.1 Product ID# PL7C0XMGH4V4

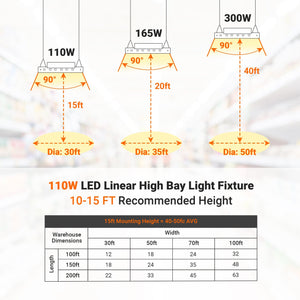

- Recommended Height: 10 - 15ft from Ground
| Type | LED Linear High Bay | ||

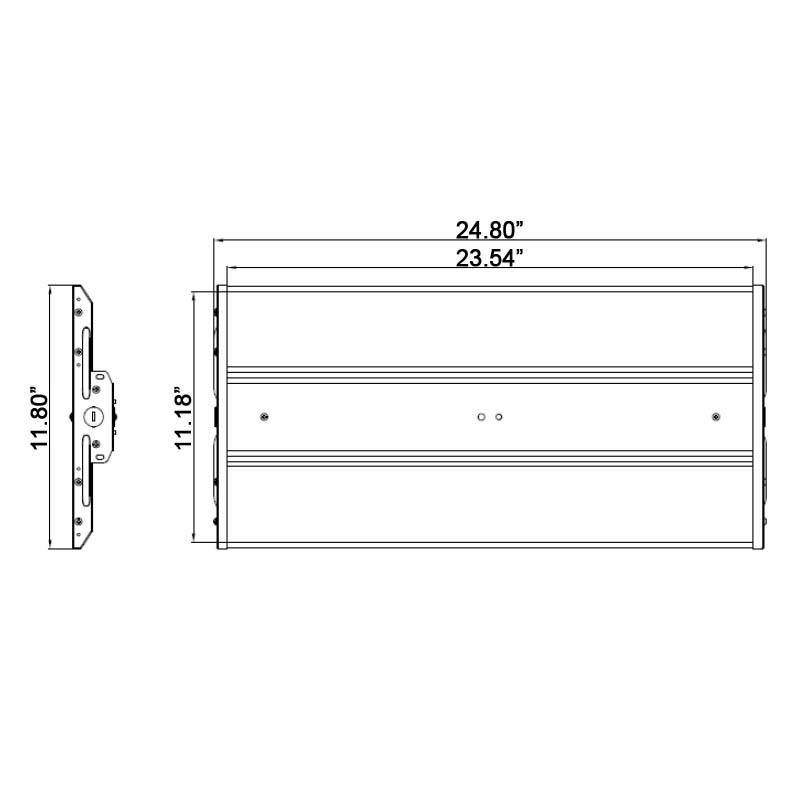

| Item Dimensions | 24.80in. x 11.80in. x 2in. | ||
| Wattage | 110W | ||
| Equivalent | 175W-250W MH | ||
| CCT | 5000K | ||
| Lumens | 16,000 Lm | ||
| CRI | >80 | ||
| Input Voltage | 120-277VAC | ||
| Finish | White |
| Material | Iron |
| Rated Lifetime | 50,000+ Hours |
| Beam Angle | 90 Degrees |
| Lens Type | PMMA Lens Diffuser |
| Mounting Type | 40in. Chain with Hook |
| IP Rating | IP20 |
| Warranty | 5-Year Limited |
| Certification(s) |
|
Downloads
| Box Qty | 2 |
| Box Dimensions (in.) | 29in x 16in x 16in |
| Box Weight (lbs) | 16.40 lbs |
| Carton Qty | 2 |
| Carton Dimensions (in.) | 29in x 16in x 16in |
| Cartin Weight (lbs) | 16.40 lbs |
