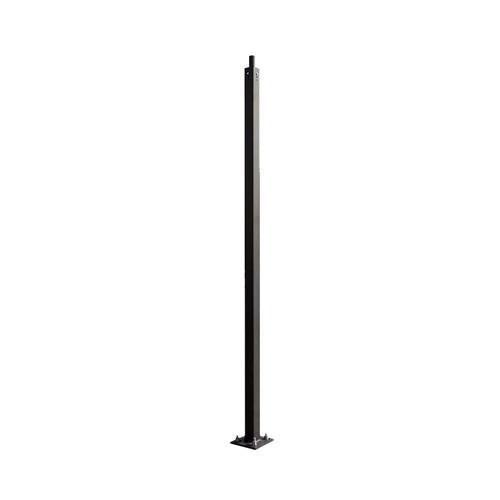

15ft 4in. x 4in. Steel Straight Square Pole - 11ga - 4" Base Cover - 3/4" Anchor Bolts - Bronze
The LEPG PSSS Series Straight Square Steel poles are built from high strength steel tube and are available side drilled for arm mounted area lighting luminaires or with tenon mounts for flood and post top luminaires.
Typical area lighting applications include retail centers, industrial parks, schools and universities, public transit and airports, office buildings and medical facilities.
Mounting heights of 10 to 30 feet can be used based on selected luminaire application.
Conforms to ASTM-A 500 Grade B: Minimum Yield Strength of 46,000 PSI. Wall Thickness Available in 11 Gauge (.120˝) or 7 Gauge (.180˝).
|Adapter Type||2 3/8'' Tenon|
|Mounting Surface||Straight Square Steel Pole|
|Required Pole Size||4in.|
|Box Dimensions (in.)|
|Box Weight (lbs)|
|Carton Dimensions (in.)|
|Cartin Weight (lbs)|
