165W LED Linear High Bay - 23,000lm - 5000K - 100-277VAC - Chain Mount - DLC Qualified - White

| Write a Review!

165W LED Linear High Bay - 23,000lm - 5000K - 100-277VAC - Chain Mount - DLC Qualified - White

$84.90 $99.90
SKU: HTM-LHB05-165W50WHC1-BFP2
Maximum quantity available reached.
165W LED Linear High Bay Lights are compact and sleek fixtures putting out up to 23,000 lumens while maintaining a CRI > 80 of neat, white light. With an efficiency exceeding 133-139lm/W and a CRI > 80, LED Linear High Bays are a must when considering a replacement for outdated metal halide fixtures. The line... View More
165W LED Linear High Bay Lights are compact and sleek fixtures putting out up to 23,000 lumens while maintaining a CRI > 80 of neat, white light. With an efficiency exceeding 133-139lm/W and a CRI > 80, LED Linear High Bays are a must when considering a replacement for outdated metal halide fixtures. The line... View More
$84.90 $99.90
Maximum quantity available reached.

Suggested Accessories

10kA Slim Shape Hatch LED Surge Protector - 120/277VAC
 $17.95
10kV/10kA LED Surge Protector - Hatch Snap Lock Mounting
 $24.95
Continue Shopping

Description

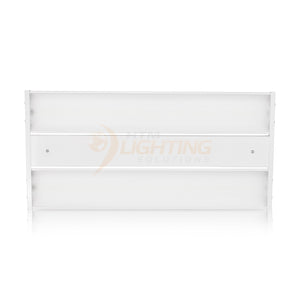

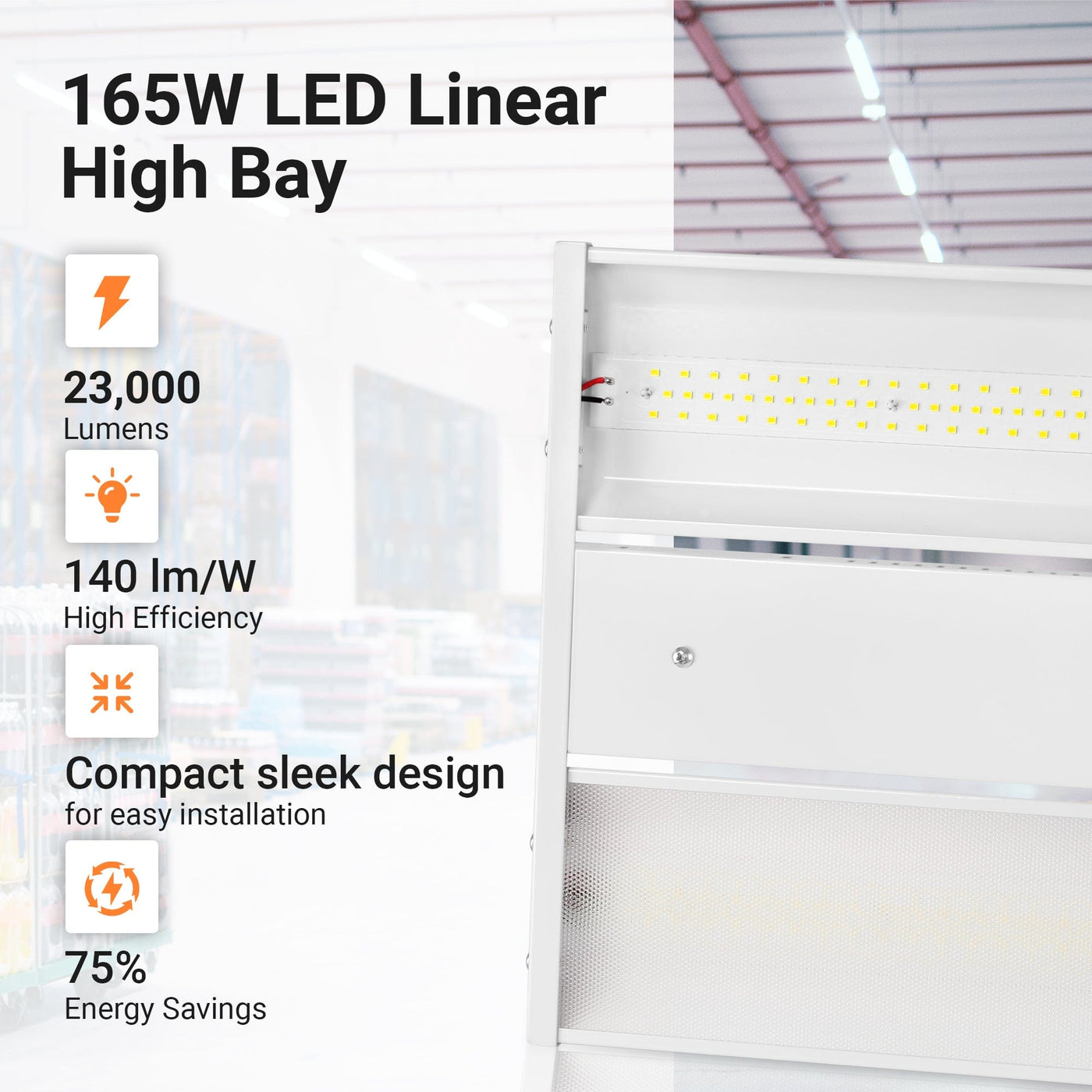

165W LED Linear High Bay Lights are compact and sleek fixtures putting out up to 23,000 lumens while maintaining a CRI > 80 of neat, white light.

With an efficiency exceeding 133-139lm/W and a CRI > 80, LED Linear High Bays are a must when considering a replacement for outdated metal halide fixtures. The linear feature of the 165W LED high bay fixture with a 90 Degree Beam Angle enables for better light distribution throughout the targeted area.

LED Linear High Bay Light Fixtures are versatile and can be used in a wide array of applications, such as warehouse lighting, gymnasium lighting, supermarkets, workshops, and exhibition halls among many other applications!

Features:

  • 250W to 400W Metal Halide Replacement

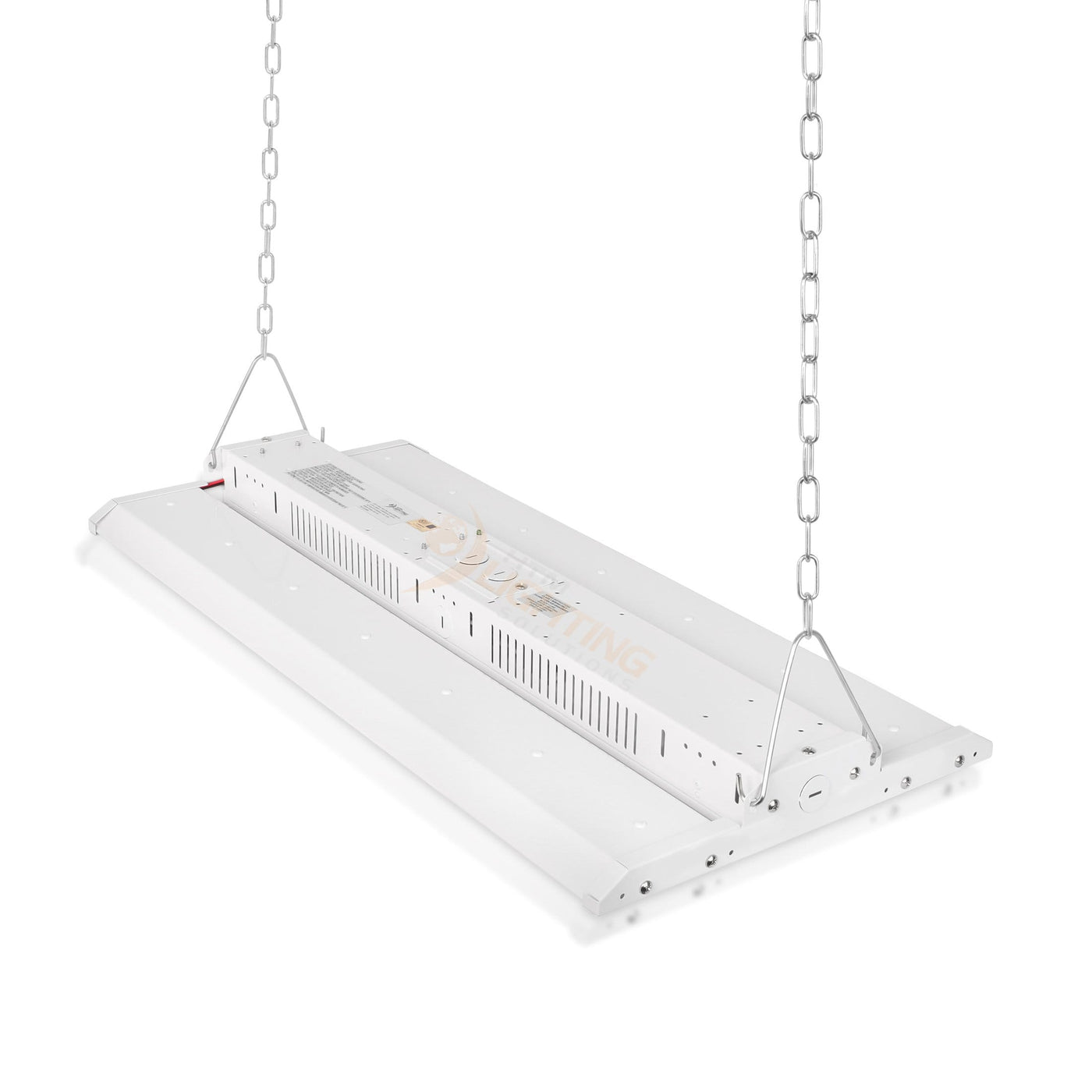

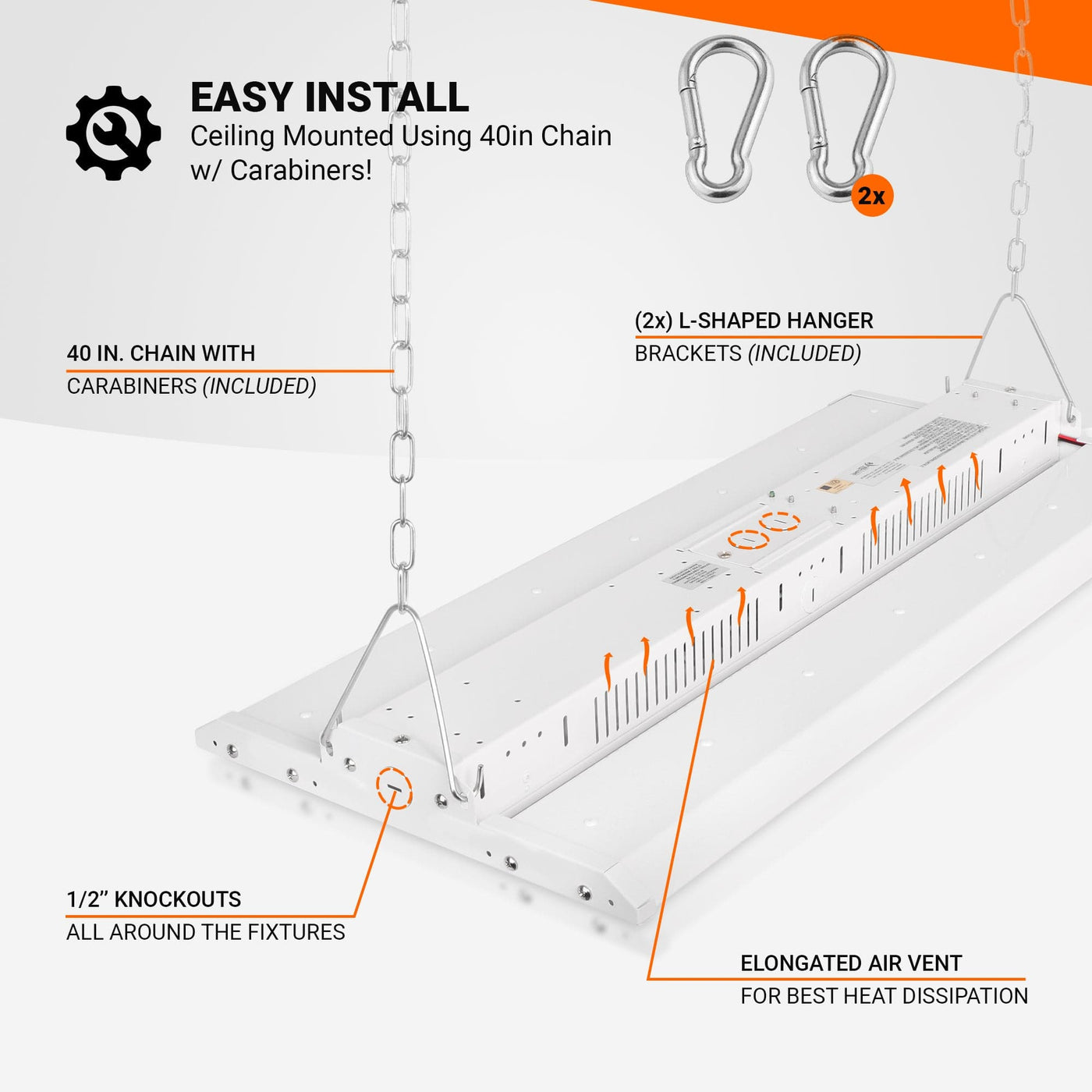

  • One-Person Easy Installation Using 40in. Chain with Hooks
  • 5-Year Worry-Free Warranty
  • 5,000K Cool White Color Temperature
  • CRI > 80 to display True Color Rendering

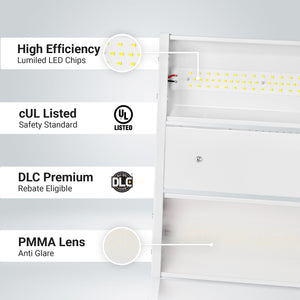

  • PMMA Lens Diffuser for proper even light distributions.
  • 100-277VAC Driver with Built-In Surge Protection of L/N-PE: 4kV, L-N: 2kV
  • 1-10V Dimming Standard
  • IP20 Rated for Dry Locations
  • Compatible with Occupancy Sensor, Stand-By Dimming Level, And Daylight Sensors
  • UGR <26 (X=4H, Y=8H; S/H=1; Reflectances: 70%/50%/20%)
  • Color Consistency < 6 SDCM
  • DLC Premium 5.1 Product ID# PLS9CE4V9UKX

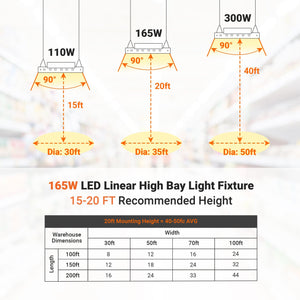

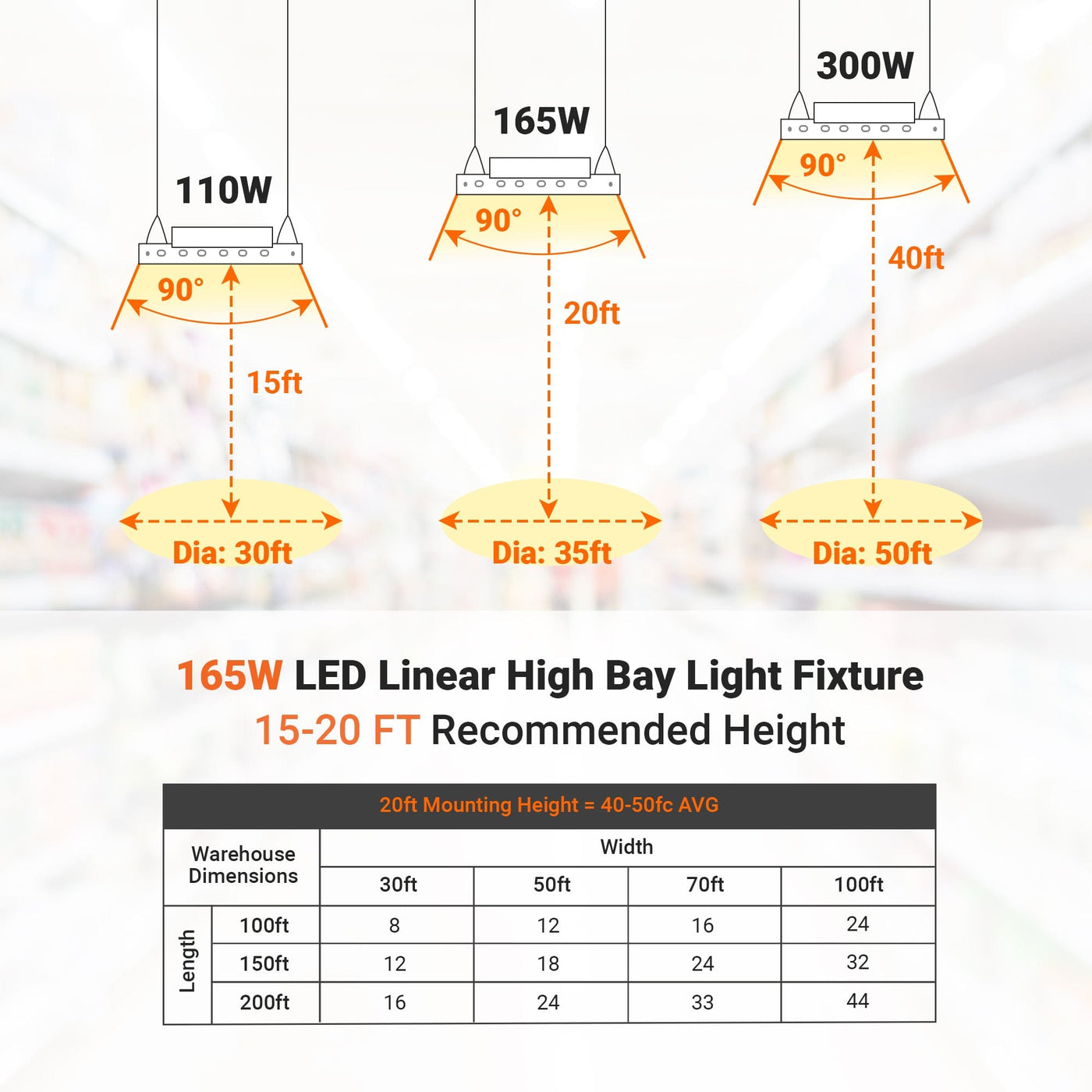

  • Recommended Height: 15 - 20ft from Ground
Type LED Linear High Bay

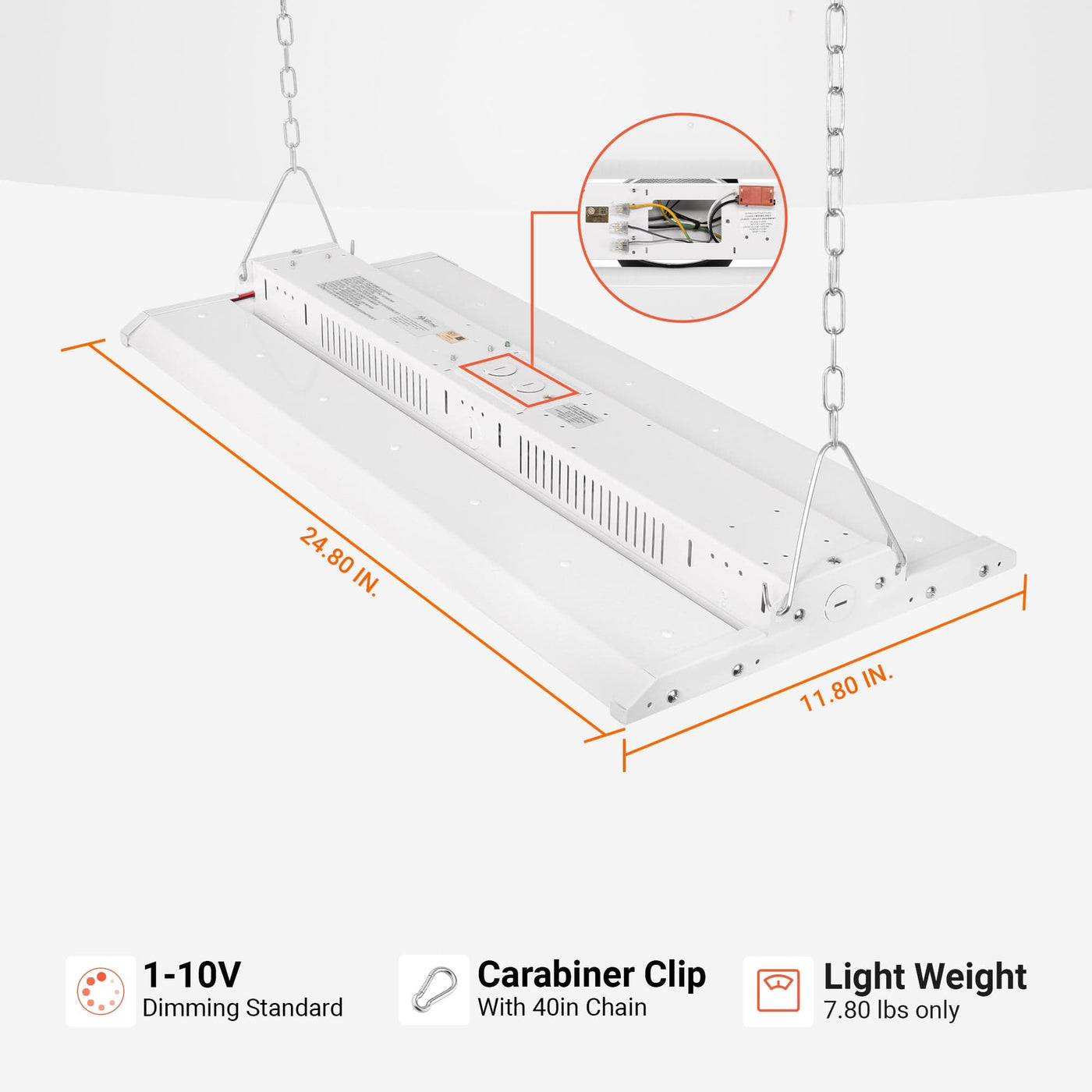

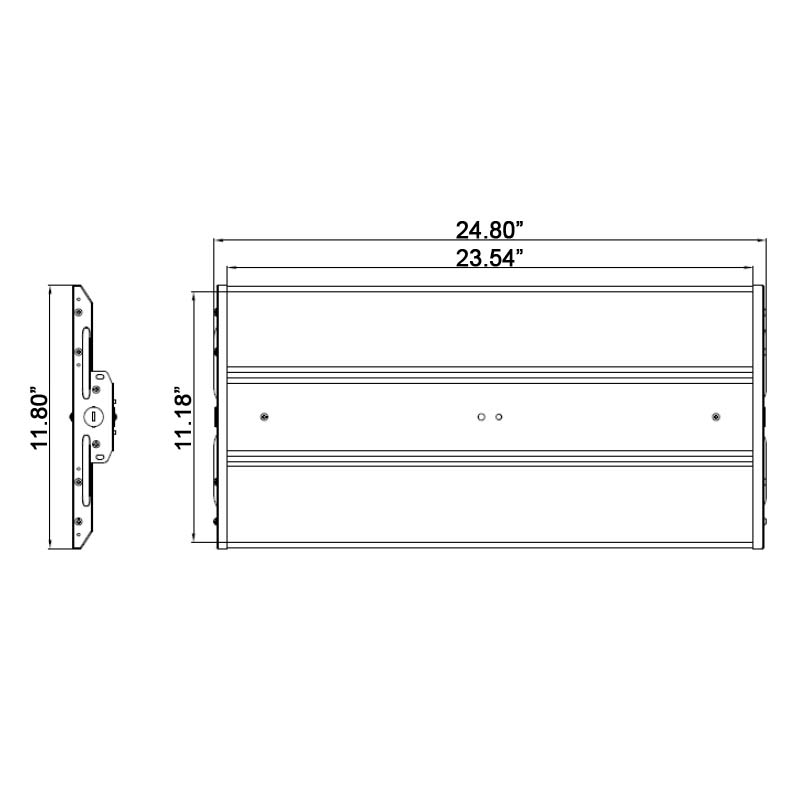

Item Dimensions 24.80in. x 11.80in. x 2in.
Wattage 165W
Equivalent 250W-400W MH
CCT 5000K
Lumens 23,000 Lm
CRI >80
Input Voltage 120-277VAC
Finish White
Material Iron
Rated Lifetime 50,000+ Hours
Beam Angle 90 Degrees
Lens Type PMMA Lens Diffuser

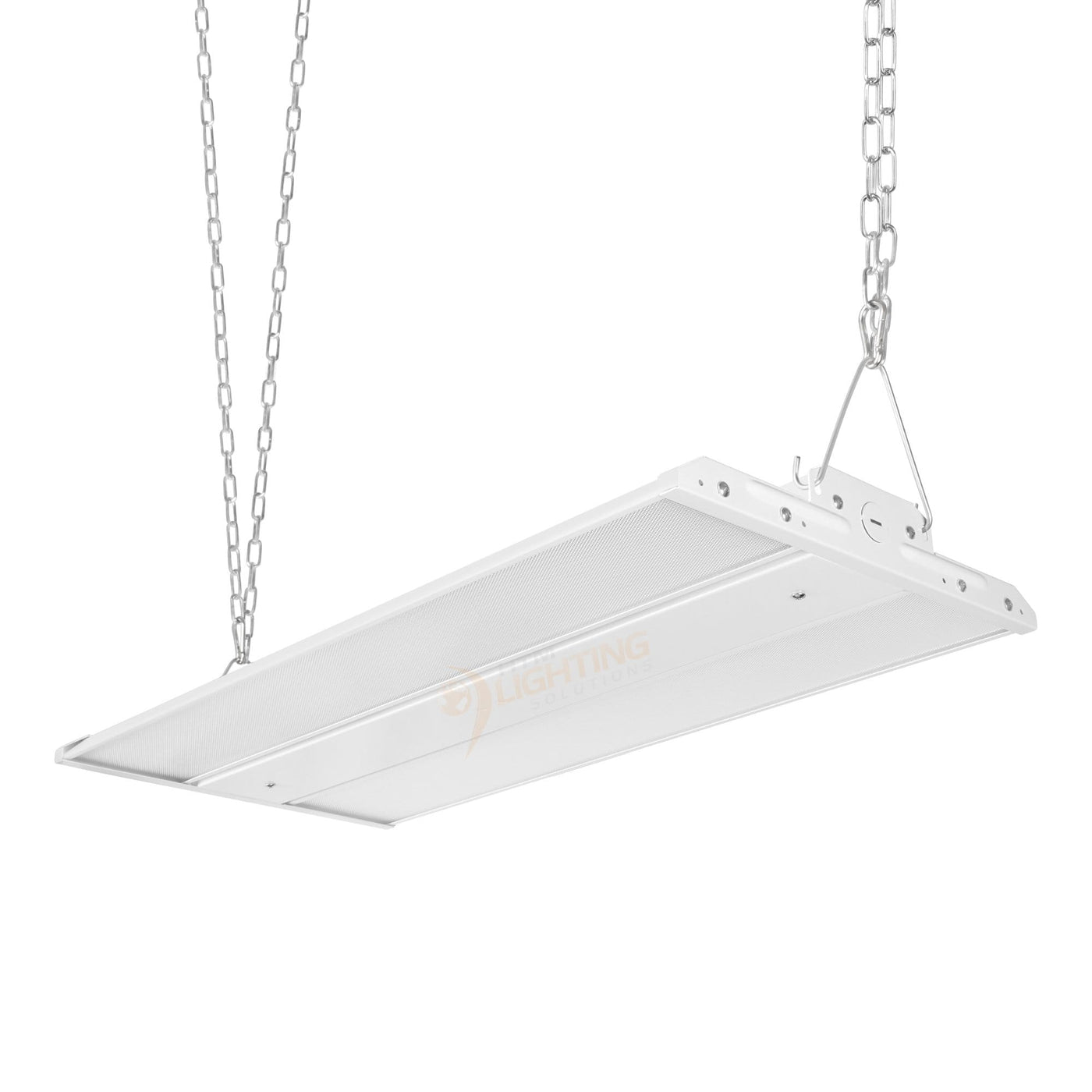

Mounting Type 40in. Chain with Hook
IP Rating IP20
Warranty 5-Year Limited
Certification(s)
  • cUL Listed
  • DLC Qualified
Box Qty 2
Box Dimensions (in.) 29in x 15in x 8in
Box Weight (lbs) 17.90 lbs
Carton Qty 2
Carton Dimensions (in.) 29in x 15in x 8in
Cartin Weight (lbs) 17.90 lbs
