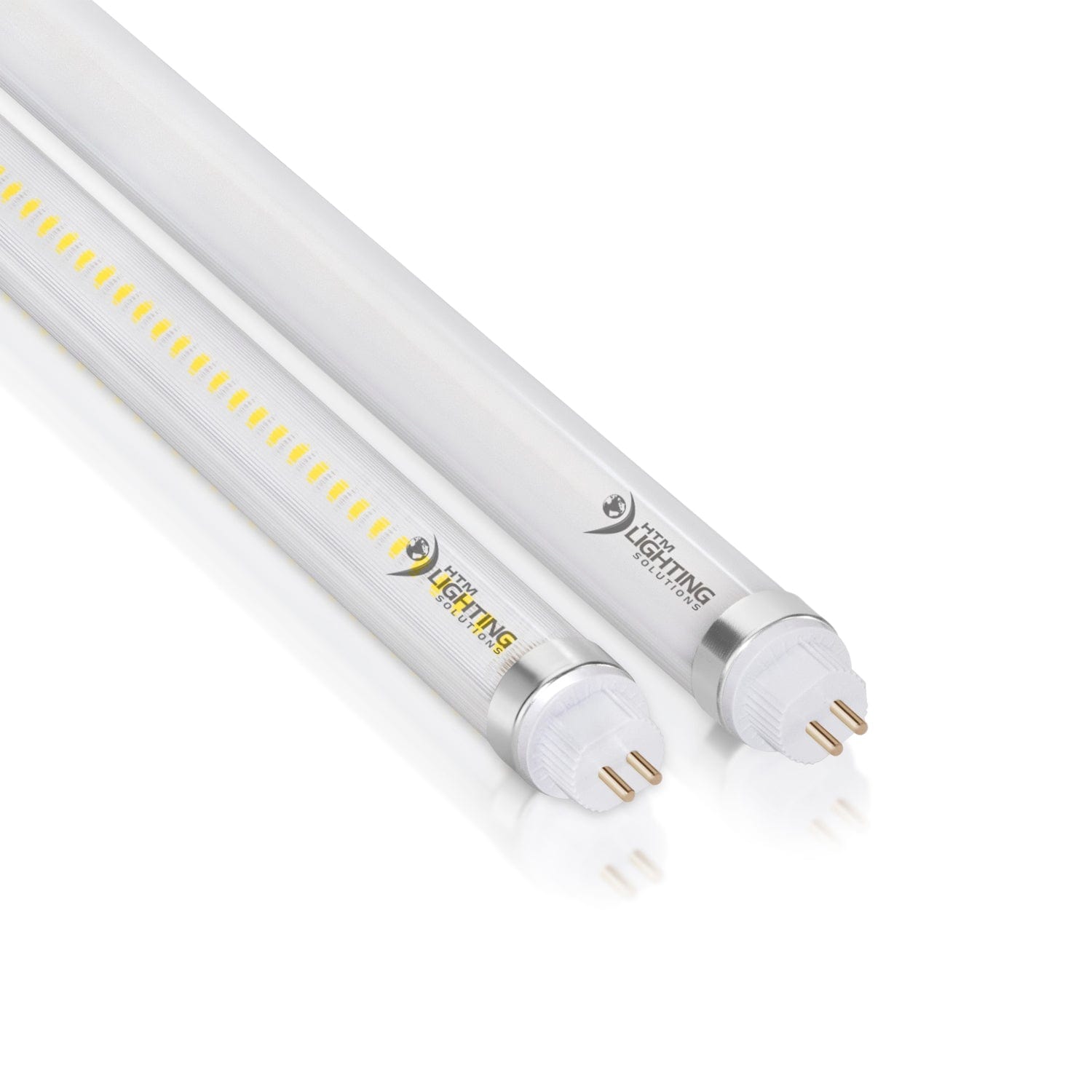

HTM Product Overview: 4ft 24W T5 LED Tubes


As one of our most popular products, our 4ft 24W T5 LED Tubes are a simple but efficient way of reducing your power consumption and lowering your overall cost!

These T5 LED Tubes provide maximum efficiency by requiring a simple dual-ended ballast bypass connection, and are rated for up to 50,000 hours of use!


  • As a 54W High Output fluorescent tube replacement, these 24W T5 LED Tubes use a G5 Mini Bi-Pin base and are rated for 100-277V!

  • These are available in either 4000K Natural White and 5000K Cool White, and are also available with either a Frosted or Clear lens!

  • These are incredibly efficient at 140 lumens per watt with an instant start and a wide beam angle of 120 degrees for maximum coverage!

  • These reliable LED Tubes are rated for up to 50,000 hours of use and are backed by our 5-Year Warranty!

  • The 4ft T5 LED Tubes are UL Listed [E480549] to avoid electrical shock and fire hazard, as customer safety is our priority!

Pros and Cons

As with all types of lighting, there are some factors to consider before going with our 4ft T5 LED Tubes. Here are several pros and cons to consider:


  • Our T5 LED Tubes provide an instant start and have a shatterproof design!

  • These tubes are incredibly energy efficient at 140 lm/W, and have an estimated 50,000 hour lifespan!

  • Since power is supplied to the tubes directly, and these LED tubes use aluminum heat sinks for improved heat dissipation, you no longer have to worry about maintenance costs from traditional lighting sources, such as swapping out the ballasts.


  • Since these are LED tubes with an internal driver, these do require a ballast bypass and for the fixtures to be rewired as a dual-ended connection.

  • LED lighting is unidirectional, meaning that these tubes only provide a 120 degree beam angle instead of the 360 degree beam angles of most fluorescent tubes.

For a more comprehensive look at these products or to compare with your existing setup, the datasheet has also been provided HERE for your reference.

Do you need any assistance with rewiring your T5 fixture or have any additional questions or input? Please feel free to reach out today, either by giving a call at (813)-649-8899 or by emailing us at for a complimentary quote on your lighting project or for any additional assistance!
