Our Customer

We were reached out to by Native Creative Design for a solution for two signs they were working on for Carey and Giampa Realtors.

- Sign #1 is a 6ft Wide by 2ft 6in High Double-Sided Monument Sign

- Sign #2 is a 8ft Wide by 3ft 1in High Double-Sided Monument Sign

Our Solution

After running some photometric layouts for both signs, we were able to determine that 2x 12in Satin Black Angle Shades with 13in Long Straight Arms and 15.5W A19 LED Light Bulbs would be needed on each side of each sign in order to achieve the ideal foot candle range for lighting!

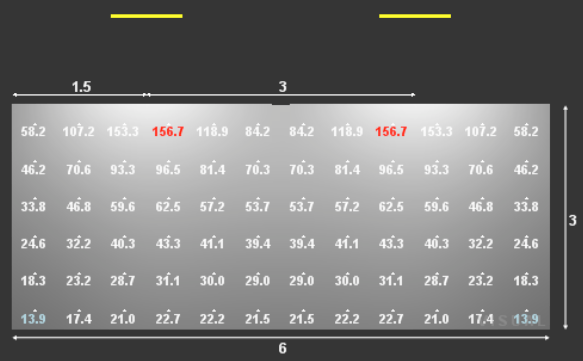

Sign #1:Achieves an average of 54.2 footcandles when the fixtures are spaced 3ft apart and mounted 1ft above, which exceeds the recommended range and provides a strong, bright light!

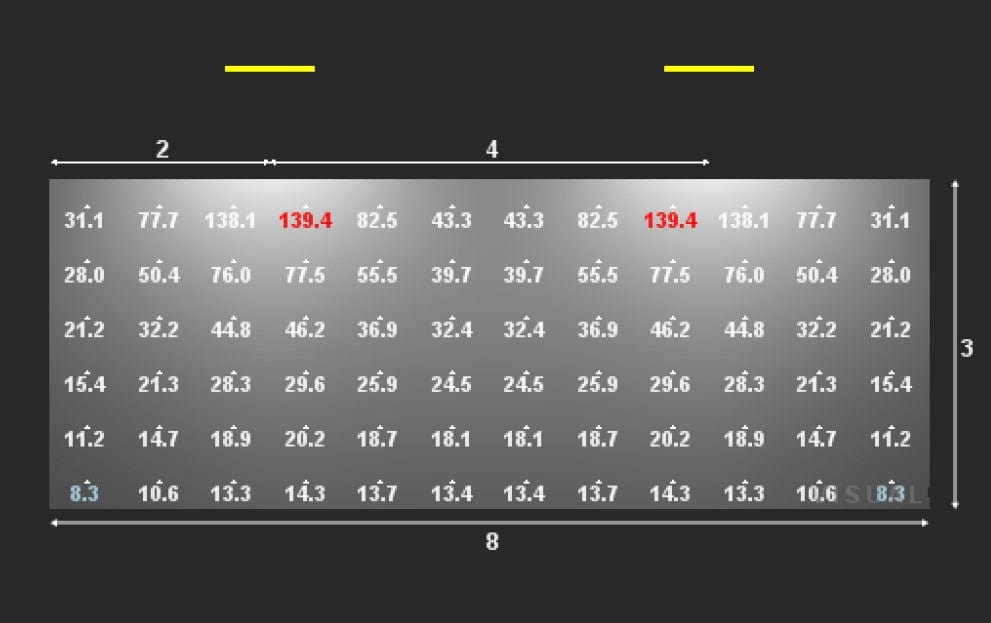

Sign #2: Achieves an average of 38.1 footcandles when the fixtures are spaced 4ft apart and mounted 1ft above, which falls within the recommended range!

Results & Benefits

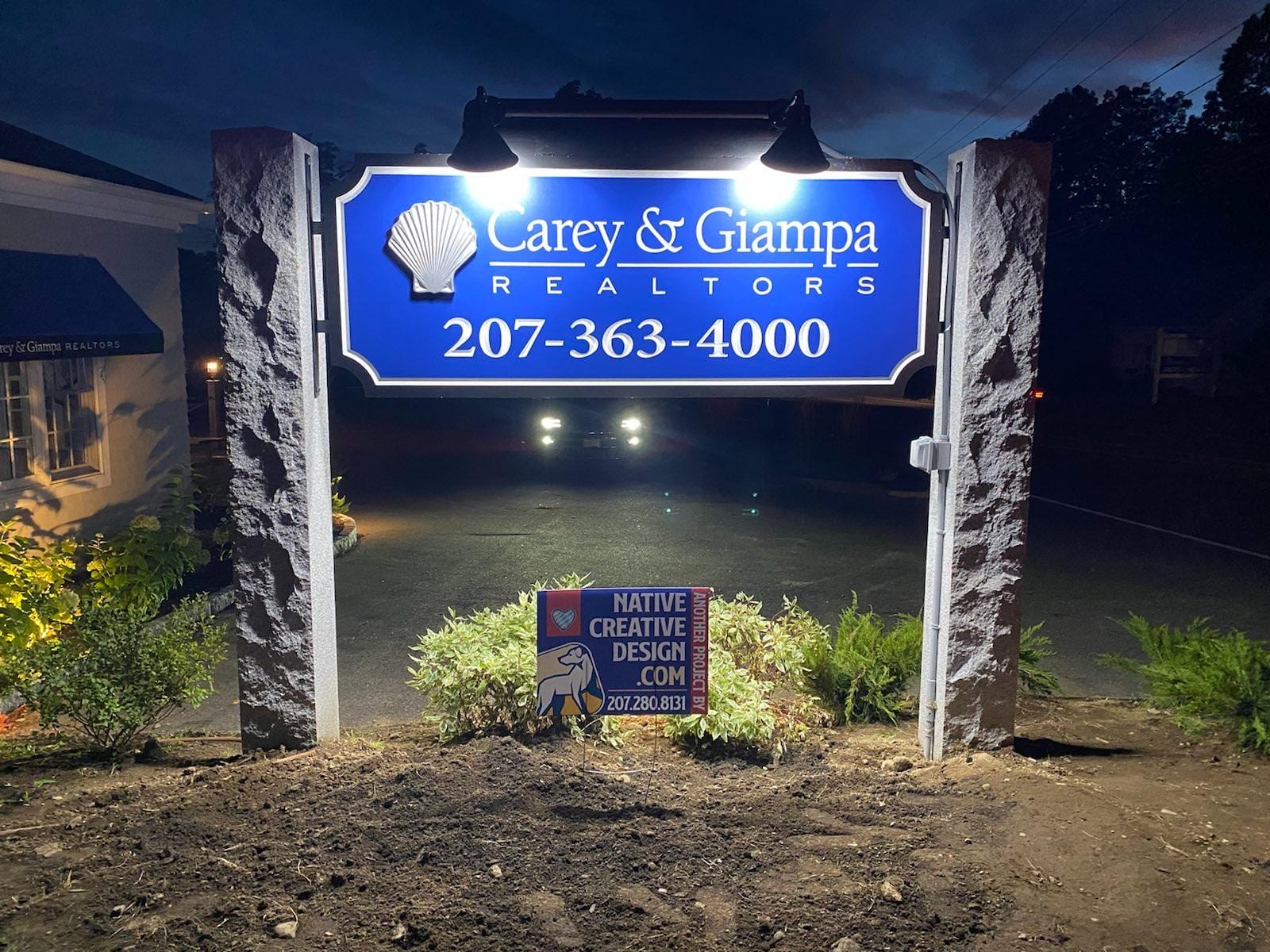

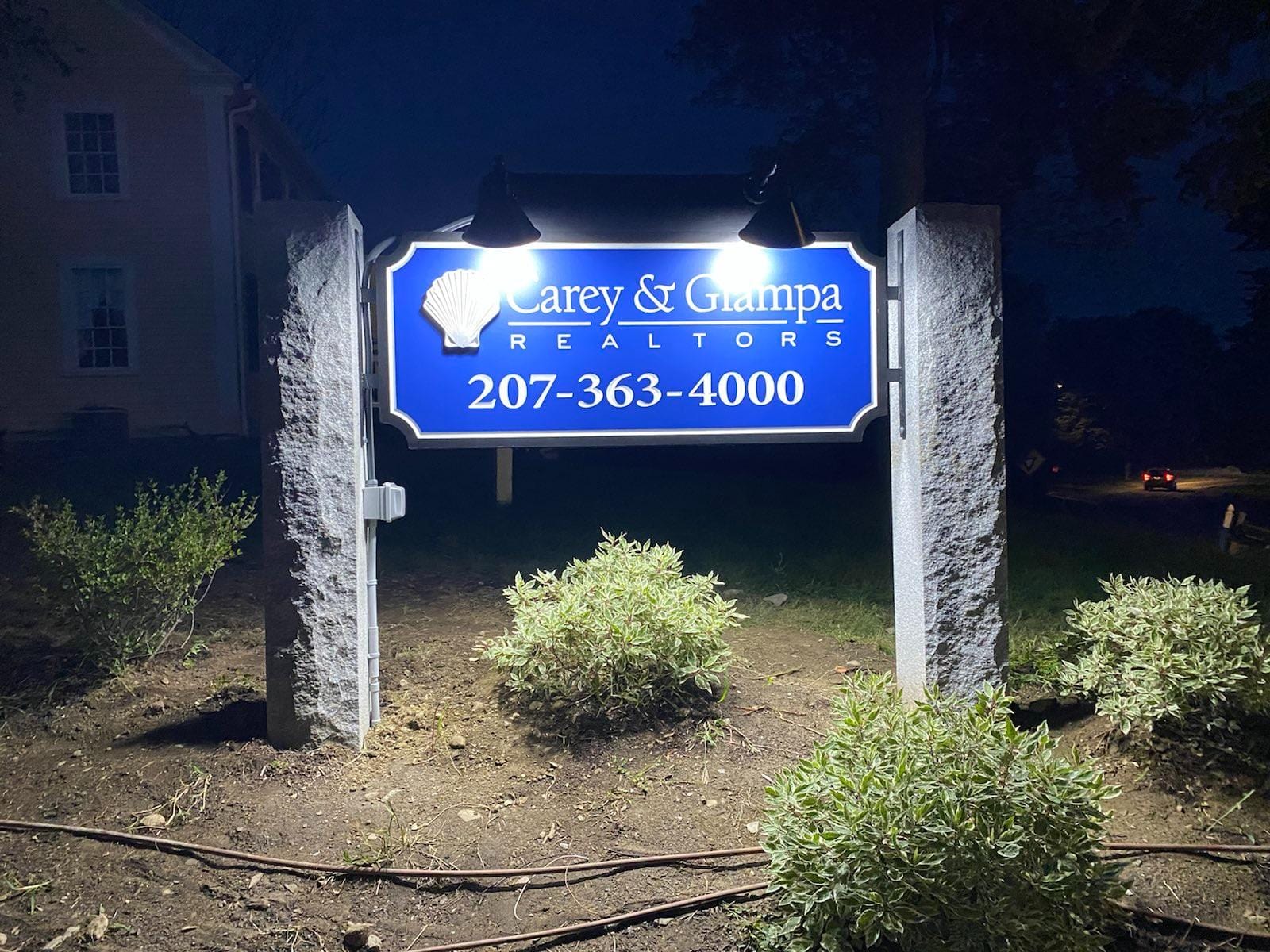

After installing the fixtures as recommended, both signs are well-lit and bright!

For a business sign lighting layout similar to the one we’ve provided above for these signs, or if you would like a complimentary quote please feel free to give us a call at (813)-649-8899 or simply emailing us at sales@htm-lighting.com.
